Home >> Products >> SMT Handing Series >> Loader&Unloader
1.PLC+Screen touch panel control
2.Magazine capacity: 3 magazine (Top 1+ Down 2)
3.Selectable pitch settings
4.Towerlight display for machine status
5.Automatic magazine change-over
6.Flexible platform to suit standard magazines
7.Regulated pressure on attached pneumatic pusher
8.Pusher position adjustable to centre of the magazine
9.Automatic magazine alignment by upper and lower pneumatic clamping
10.SMEMA compatible
Description

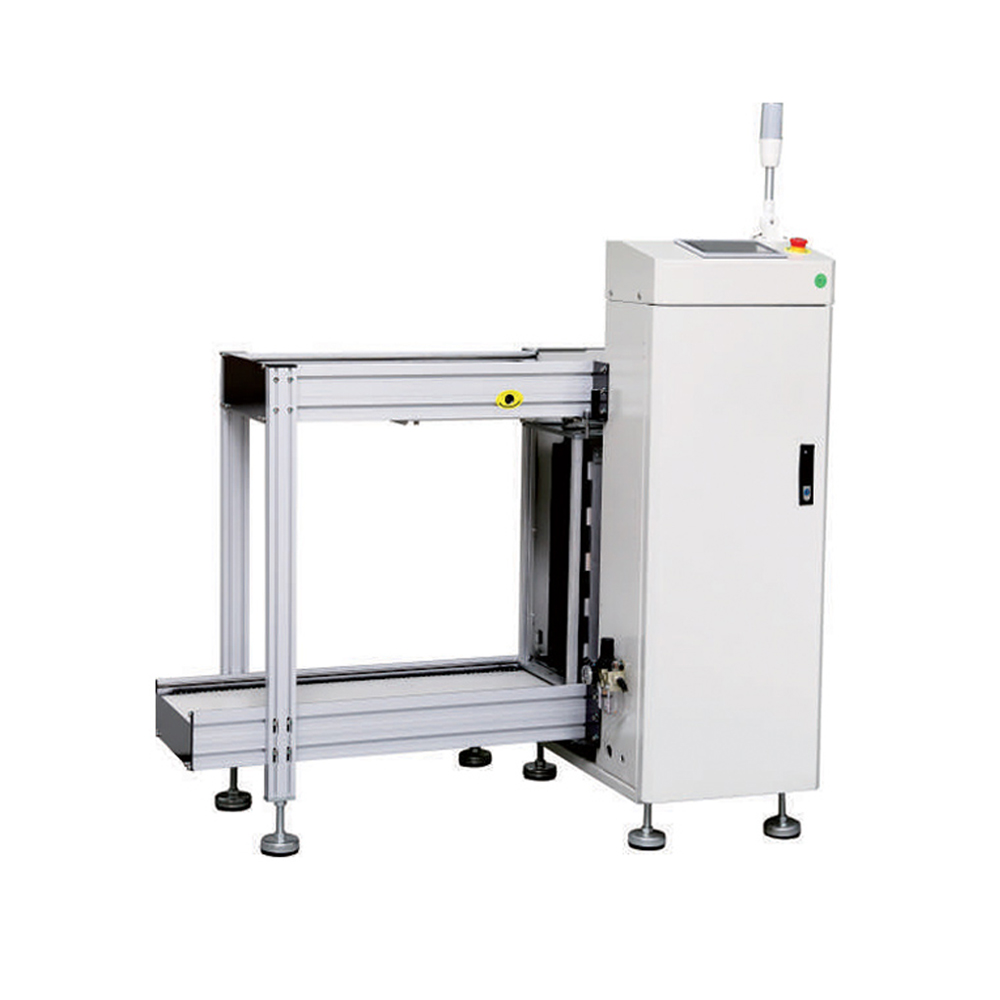

The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
Technical Parameters
| Model | LD-M-TN | LD-L-TN | LD-LL-TN | LD-XL-TN | LD-XXL-TN | LD -GXXXL-TN |
| Dimension(L*W*H) | 1330*765*1250mm | 1650*845*1250mm | 1800*909*1250mm | 1800*980*1250mm | 2065*1230*1250mm | 1925*1226*1260mm |
| PCB size(L*W) | 50*80-330*250mm | 50*80-445*330mm | 50*80-530*390mm | 50*80-530*460mm | 50*80-610*460mm | 50*50-500*500mm |
| Magazine size(L*W*H) | 355*320*563mm | 460*400*563mm | 535*460*563mm | 535*530*563mm | 630*530*563mm | 630*620*570mm |
| Transport height | 900±20mm | |||||
| Transfer direction | L-R or R-L | |||||
| Operation side | Front of the machine | |||||
| Fixed rail | Front of the machine | |||||
| Interface | SMEMA | |||||
| PCB thinckness | 0.6mm min | |||||
| Components clearance | 25mm below | |||||
| PCB loading time | Approx 6 seconds | |||||
| Magazine change-over time | Approx 30 seconds | |||||
| Pitch distance | 10.20.30.40mm pitch or specify | |||||
| Magazine capacity | Top 1+Down 2 | |||||
| Magazine weight | 60kg max | |||||
| Control | PLC | |||||
| Power supply | AC220V/110V, 50/60 HZ, 1 phase | |||||
| Power consumption | 300VA max. or specify | |||||
| Air supply | 4-6bar | |||||
| Air consumption | 10ltr/min max | |||||
| Weight | 140kg | 200kg | 240kg | 300kg | 350kg | 400kg |
