1.PLC+Screen touch panel control
2.Bare boards loader mode & By-pass mode selectable
3.Complete top safety visual window with interlock
4.Adjustable vacuum nozzle positions provide a better way to hold the different size PCB
5.Automatically positioning the shuttle distance and accurate release the PCB on the conveyor rail
6.Sucking stability improved by using robust vacuum generator system
7.Pre-warning limit alarm for stack empty
8.A hand crank is used to adjust rail width
9.SMEMA compatible
Description

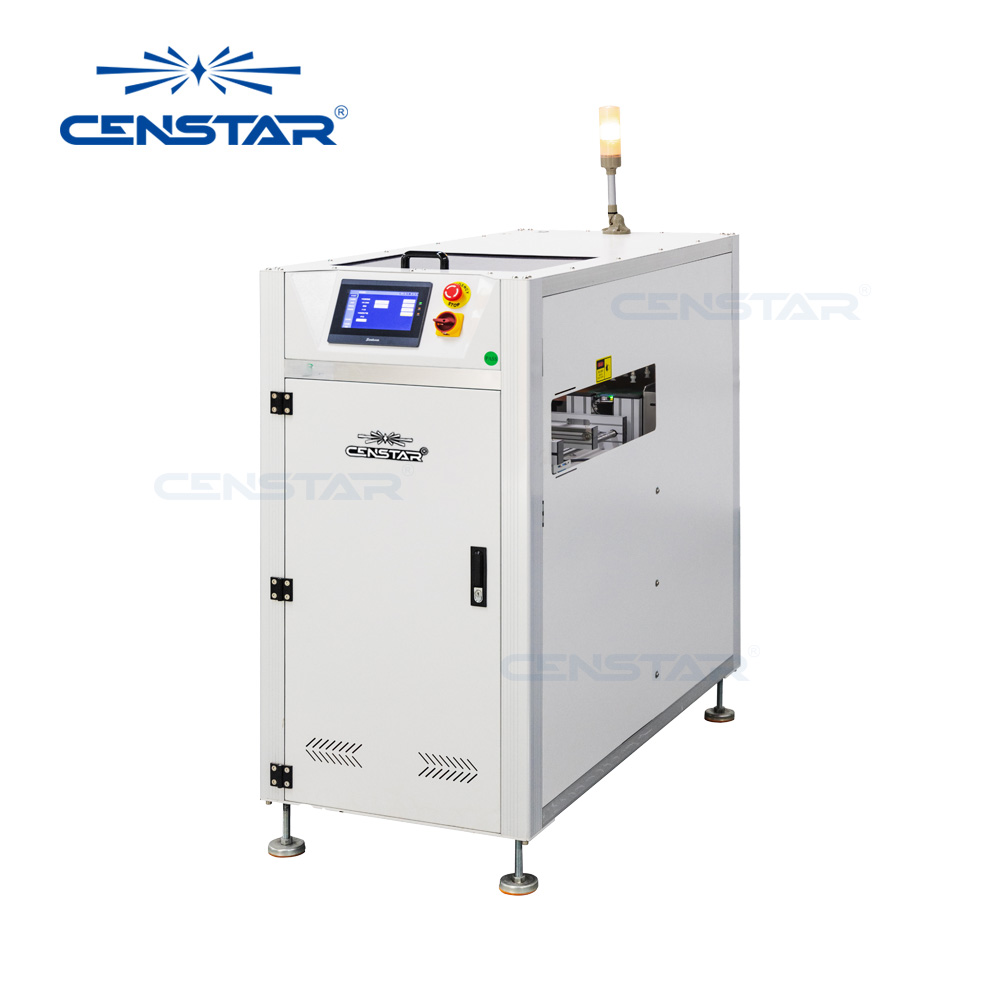

The vacuum loader is used to load bare boards for SMT production lines. The top PCB is lifted from stack and lowered onto belt segment. The PCB stack is manually loaded into the machine and the individual PCBs are handed over to the downstream system on a transfer conveyor
Technical Parameters
| Model | LT-GXL-TN | LT-G100XL-TN | LT-G150XL-TN |
| Dimension(L*W*H) | 615*1240*1300mm | 1000*1240*1300mm | 1500*1240*1300mm |
| PCB size(L*W) | 50*50-530*460mm | 50*50-920*460mm | 50*50-1300*460mm |
| Transport height | 900±20mm | ||
| Transfer direction | L-R or R-L | ||
| Operation side | Front of the machine | ||
| Fixed rail | Front of the machine | ||
| Interface | SMEMA | ||
| Conveyor belts | ESD flat belt | ||
| Belt speed | 0.5-20m/min adjustable | ||
| PCB edge support | 4mm | ||
| PCB thinckness | 0.6mm-6mm | ||
| PCB weight | 2kg max | ||
| PCB loading time | Approx 12 seconds | ||
| PCB stock capability | 400pcs(0.6mm thick PCB) | ||
| Pitch distance | 10.20.30.40mm pitch or specify | ||
| Control | PLC | ||
| Power supply | AC220V/110V, 50/60 HZ, 1 phase | ||
| Power consumption | 150VA max | ||
| Air supply | 4-6bar | ||
| Air consumption | 30ltr/min max | ||
| Weight | 130kg | 180kg | 200kg |
