1.PLC+Screen touch panel control
2.By-pass and destacker mode are selectable in the software
3.Shortest loading cycle time for PCB
4.Thickness 0.6 mm PCB available to be handled
5.Uninterrupted PCB charging
6.Towerlight display for machine status
7.Smooth and parallel width adjustment by crank wheel
8.By-pass mode selectable without removing PCB stack
9.SMEMA compatible
Description

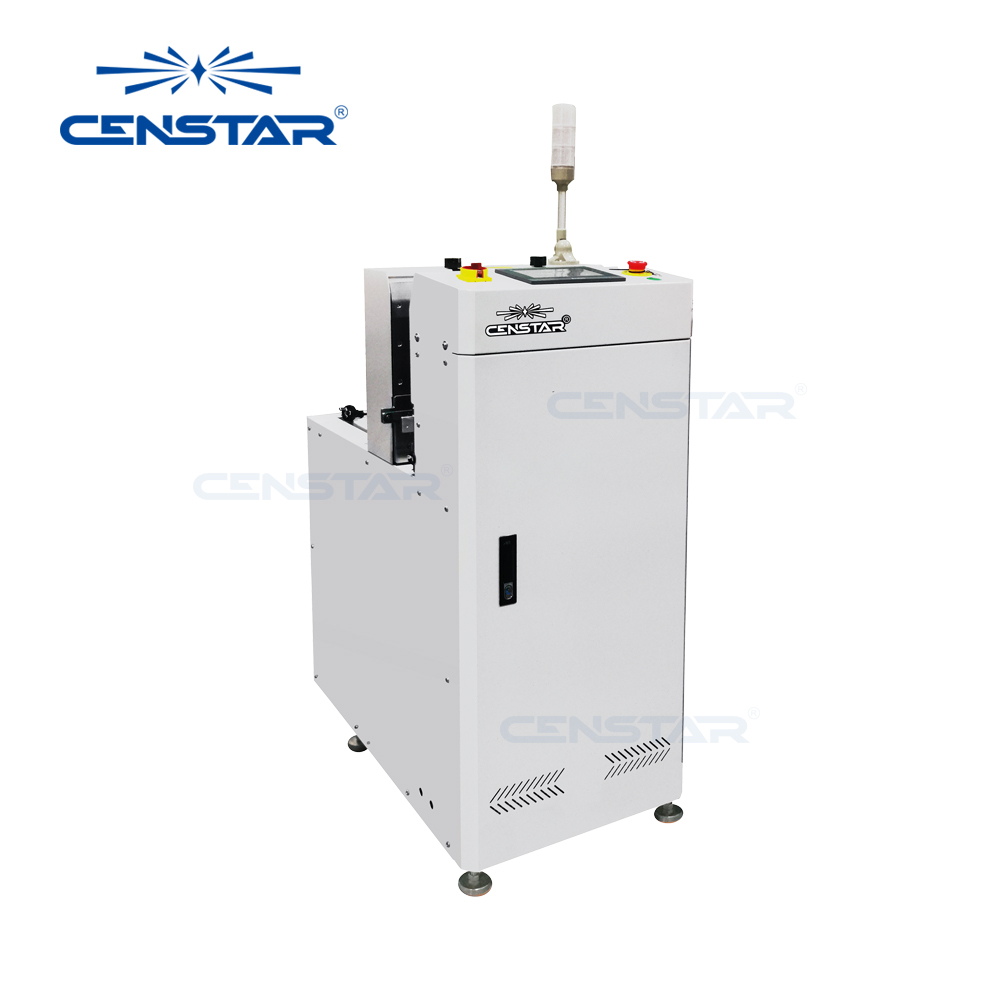

This unit is design for loading the bare boards onto the SMT line. Unique separation cams take one PCB from the bottom of the boards stacked, and softly lowering it on the ESD belts to transfer to downstream machine.
Technical Parameters
| Model | LC-G460W-TN |
| Dimension(L*W*H) | 550*900*1200mm |
| PCB size(L*W) | 50*50-460*460mm |
| Transport height | 900±20mm |
| Transfer direction | L-R or R-L |
| Operation side | Front of the machine |
| Fixed rail | Front of the machine |
| Interface | SMEMA |
| Conveyor belts | ESD flat belt |
| Belt speed | 0.5-20m/min adjustable |
| PCB edge support | 4mm |
| PCB thinckness | 0.6mm-6mm |
| PCB weight | 2kg max |
| PCB working cycle time | Approx 10 seconds |
| PCB stock capability | 400pcs(0.6mm thick PCB) |
| Magazine change-over time | Approx 30 seconds |
| Pitch distance | 10.20.30.40mm pitch or specify |
| Control | PLC |
| Power supply | AC220V/110V, 50/60 HZ, 1 phase |
| Power consumption | 100VA max. or specify |
| Air supply | 4-6bar |
| Air consumption | 10ltr/min max |
| Weight | 200kg |
