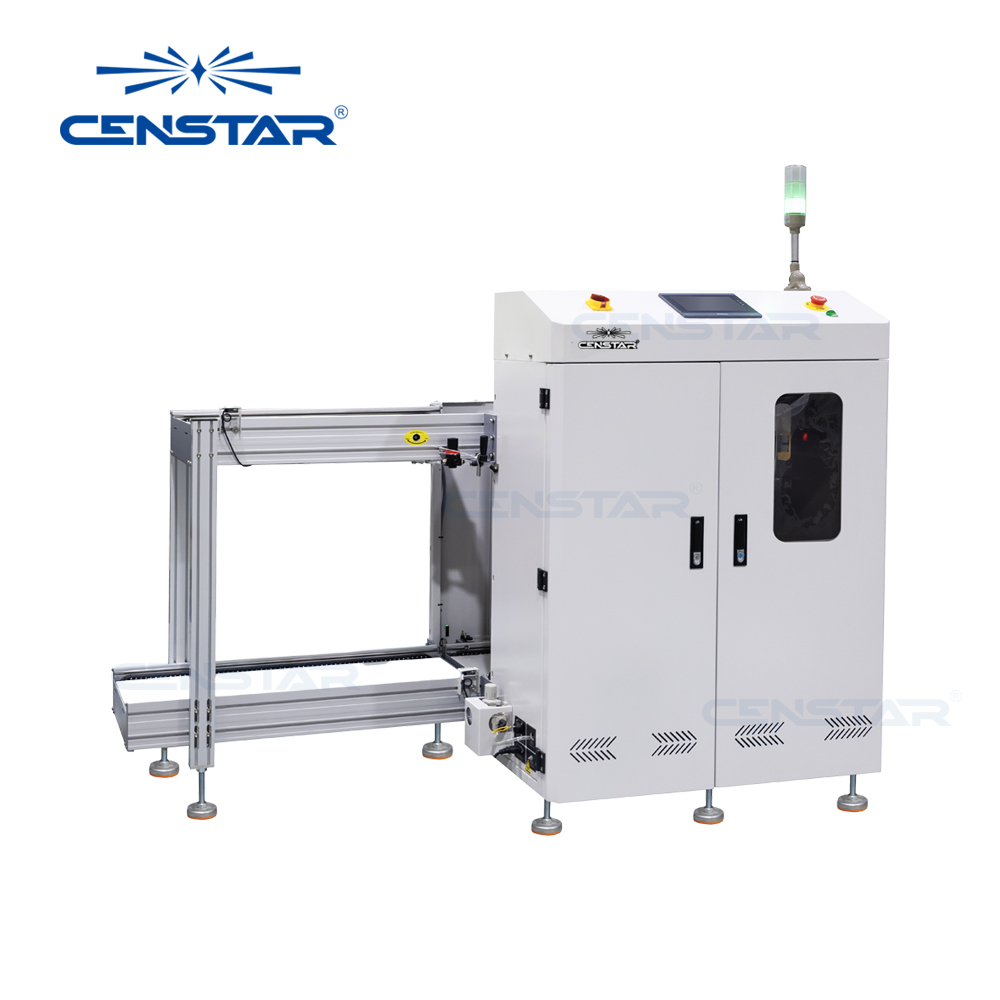

PCB Vaccum and Magazine Combo Loader
Loader&Unloader >

PCB Vaccum and Magazine Combo Loader

  • Features:

    1.PLC+Screen touch panel control

    2.Loader & Vaccum working mode can be switched exchange

    3.Selectable pitch settings

    4.Tower-light display for machines working status

    5.Flexible platform to suit standard magazines

    6.Exchangeable magazine from the front of machine

    7.Stepper motorized type pusher to enhance working stability

    8.Pusher position adjustable to Centre for the boards

    9.Magazine infeed and outfeed are automatically driving by motor on the platform

    10.Ability to handle the bare boards by vaccum

    11.SMEMA compatible

    Description

    This system is also designed with the capability of handling the bare boards & PCBA into the production line, a independent bare boards Vaccum is equipped together with the magazine loader, working in-line.

    Technical Parameters

    Model

    VL-M-TN

    VL-L-TN

    VL-LL-TN

    VL-XL-TN

    Dimension(L*W*H)

    1800*865*1250mm

    2220*945*1250mm

    2450*1110*1250mm

    2450*1250*1250mm

    PCB size(L*W)

    50*80-330*250mm

    50*80-445*330mm

    50*80-530*390mm

    50*80-530*460mm

    Magazine size(L*W*H)

    355*320*563mm

    460*400*563mm

    535*460*563mm

    535*530*563mm

    Transport height

    900±20mm

    Transfer direction

    L-R or R-L

    Operation side

    Front of the machine

    Fixed rail

    Front of the machine

    Interface

    SMEMA

    Conveyor belts

    ESD flat belt

    PCB edge support

    4mm

    PCB thinckness

    0.6mm-6mm

    Components clearance

    25mm below

    PCB weight

    2kg max

    PCB loading time

    Approx 12 seconds

    Magazine change-over time

    Approx 30 seconds

    Pitch distance

    10.20.30.40mm pitch or specify

    Magazine capacity

    Top 1+Down 2

    Magazine weight

     60kg max

    PCB stock capability

    400pcs(0.6mm thick PCB)

    Control

    PLC

    Power supply

    AC220V/110V, 50/60 HZ, 1 phase

    Power consumption

    300VA max. or specify

    Air supply

    4-6bar

    Air consumption

    30ltr/min max

    Weight

    200kg

    240kg

    280kg

    320kg
