1.PLC+Screen touch panel control
2.Loader & destacker working mode can be switched exchange.
3.Selectable pitch settings.
4.Tower-light display for machines working status
5.Flexible platform to suit standard magazines
6.Exchangeable magazine from the front of machine
7.Stepper motorized type pusher to enhance working stability
8.Pusher position adjustable to Centre for the boards
9.Magazine infeed and outfeed are automatically driving by motor on the platform
10.Ability to handle the bare boards by destacker
11.SMEMA compatible
Description

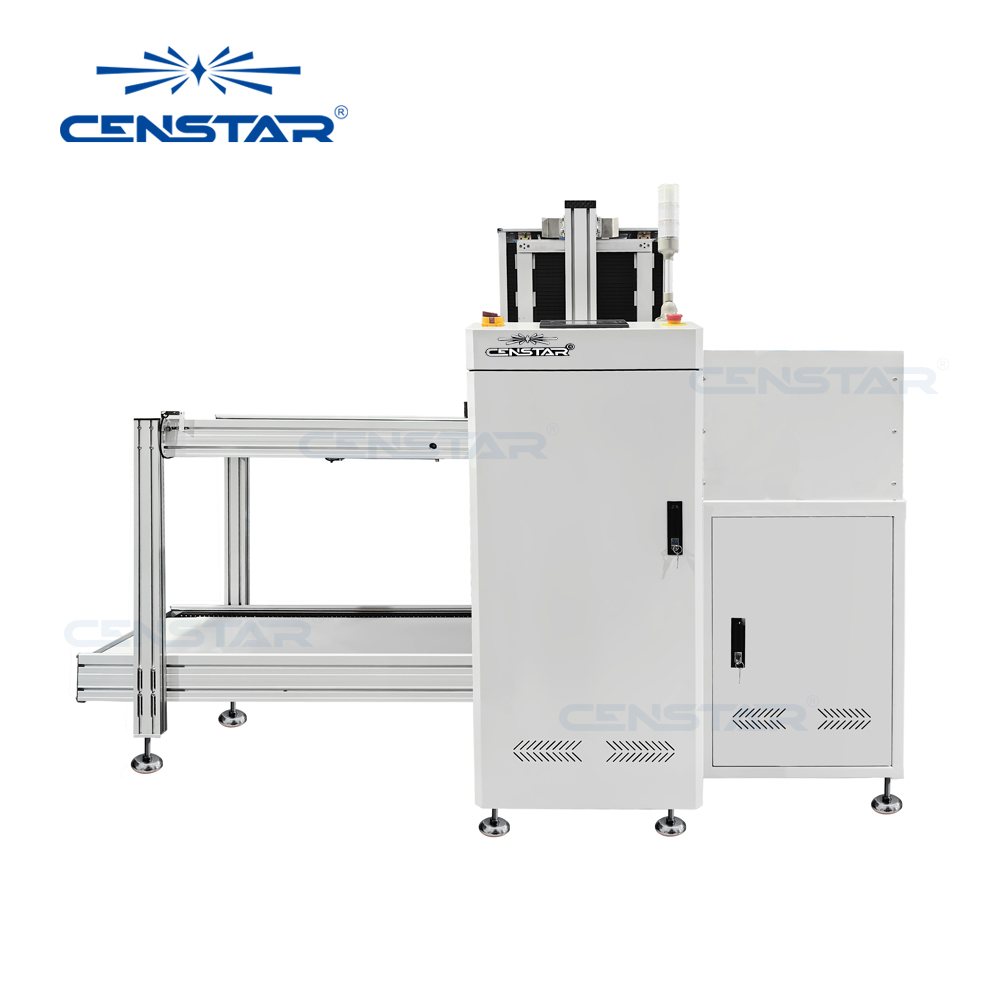

This system is also designed with the capability of handling the bare boards & PCBA into the production line, a independent bare boards destacker is equipped together with the magazine loader, working in-line.
Technical Parameters
Model | LC-M-TN | LC-L-TN | LC-LL-TN |
Dimension(L*W*H) | 1850*855*1250mm | 2185*935*1250mm | 2320*994*1250mm |
PCB size(L*W) | 50*80-330*250mm | 50*80-445*330mm | 50*80-530*390mm |
Magazine size(L*W*H) | 355*320*563mm | 460*400*563mm | 535*460*563mm |
Transport height | 900±20mm | ||
Transfer direction | L-R or R-L | ||
Operation side | Front of the machine | ||
Fixed rail | Front of the machine | ||
Interface | SMEMA | ||
Conveyor belts | ESD flat belt | ||
PCB edge support | 4mm | ||
PCB thinckness | 0.6mm-6mm | ||
Components clearance | 25mm below | ||
PCB weight | 2kg max | ||
PCB loading time | Approx 12 seconds | ||
Magazine change-over time | Approx 30 seconds | ||
Pitch distance | 10.20.30.40mm pitch or specify | ||
Magazine capacity | Top 1+Down 2 | ||
Magazine weight | 60kg max | ||
PCB stock capability | 400pcs(0.6mm thick PCB) | ||
Control | PLC | ||
Power supply | AC220V/110V, 50/60 HZ, 1 phase | ||
Power consumption | 300VA max. or specify | ||
Air supply | 4-6bar | ||
Air consumption | 30ltr/min max | ||
Weight | 190kg | 220kg | 260kg |
