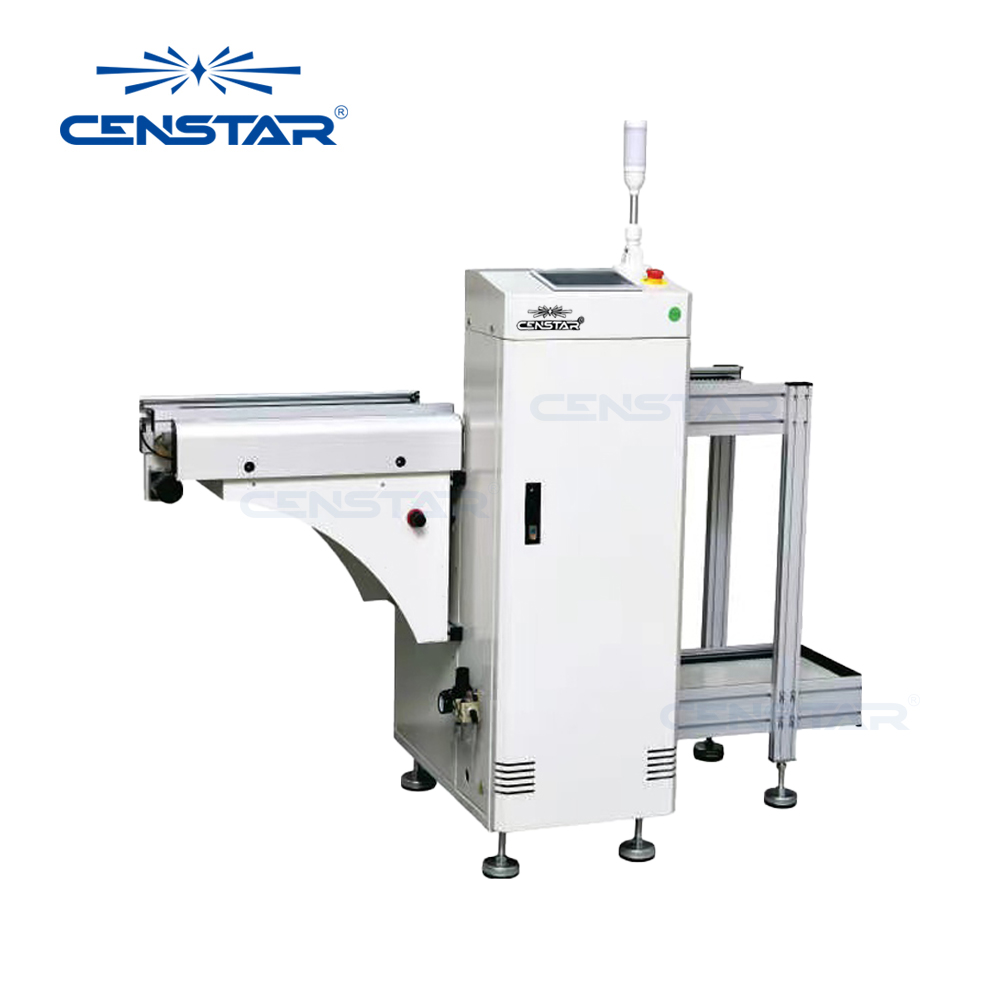

PCB Multi Magazine Unloader
Loader&Unloader >

PCB Multi Magazine Unloader

  • Features:

    1.PLC+Screen touch panel control

    2.Magazine capacity: 2 magazine (Top 1+ Down 1)

    3.Selectable pitch settings

    4.Towerlight display for machine status

    5.Automatic magazine change-over

    6.Flexible platform to suit standard magazines

    7.Regulated pressure on attached pneumatic pusher

    8.Pusher position adjustable to centre of the magazine

    9.Automatic magazine alignment by upper and lower pneumatic clamping

    10.SMEMA compatible

    Description

    The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher

    Technical Parameters

    ModelUL-M-TNUL-L-TNUL-LL-TNUL-XL-TNUL-XXL-TN
    Dimension(L*W*H)1730*765*1250mm2058*845*1250mm2260*909*1250mm2260*980*1250mm2610*1230*1250mm
    PCB size(L*W)80*80-330*250mm80*80-445*330mm80*80-530*390mm80*80-530*460mm80*80-610*460mm
    Magazine size(L*W*H)355*320*563mm460*400*563mm535*460*563mm535*530*563mm630*530*563mm
    Transport height900±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail Front of the machine
    InterfaceSMEMA
    Conveyor belts
    ESD flat belt
     Belt speed0.5-20m/min adjustable
    PCB edge support4mm
    PCB thinckness0.6mm min
    Components clearance25mm below and above
    PCB weight2kg max
    PCB loading timeApprox 6 seconds
    Magazine change-over timeApprox 30 seconds
    Pitch distance10.20.30.40mm pitch or specify
    Magazine capacity Top 1+Down 1
    Magazine weight 60kg max
    ControlPLC
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption300VA max. or specify
    Air supply4-6bar
    Air consumption10ltr/min max
    Weight160kg220kg280kg320kg450kg
