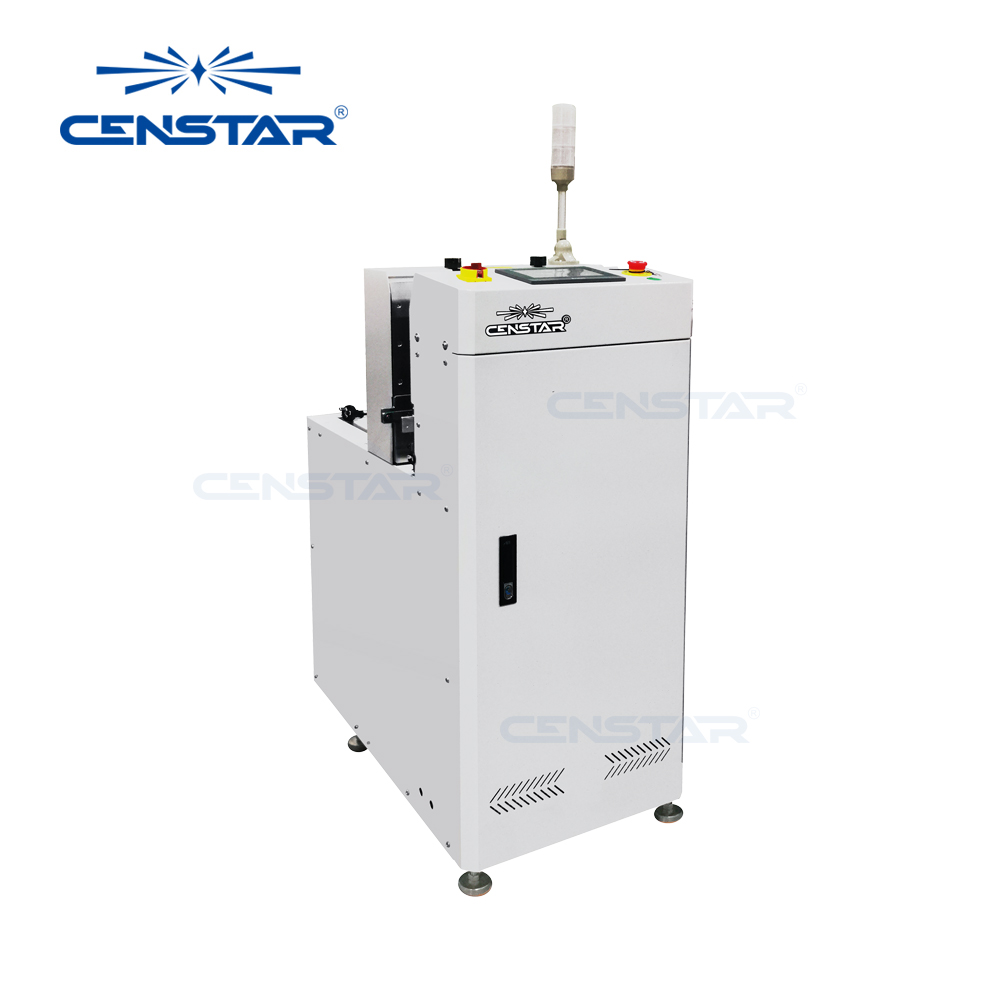

PCB Stacker Unloader
Loader&Unloader >

PCB Stacker Unloader

  • Features:

    1.PLC+Screen touch panel control

    2.By-pass and Stacker mode are selectable in the software.

    3.Shortest loading cycle time for PCB

    4.Towerlight display for machine status

    5.Smooth and parallel width adjustment by crank wheel

    6.SMEMA compatible

    Description

    This unit is design for Unloading the bare boards from the production line.

    Technical Parameters

    ModelLC-460W-TN
    Dimension(L*W*H)503*889*1200mm
    PCB size(L*W)50*50-460*460mm
    Transport height900±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail Front of the machine
    InterfaceSMEMA
    Conveyor belts ESD flat belt
    Belt speed0.5-20m/min adjustable
    PCB edge support4mm
    PCB thinckness0.6mm-6mm
    PCB weight2kg max
    PCB working cycle timeApprox 10 seconds
    PCB stock capability400pcs(0.6mm thick PCB)
    Magazine change-over timeApprox 30 seconds
    Pitch distance10.20.30.40mm pitch or specify
    ControlPLC
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption100VA max. or specify
    Air supply4-6bar
    Air consumption10ltr/min max
    Weight180kg
