1.PLC+Screen touch panel control
2.Magazine capacity: Top 1+Down 1
3.Selectable pitch settings
4.Tower-light display for machines working status
5.Flexible platform to suit standard magazines
6.Exchangeable magazine from the rear of magazine
7.Stepper motorized type pusher to enhance working stability
8.Pusher position adjustable to Centre for the boards
9.Magazine infeed and outfeed are automatically driving by motor on the platform
10.SMEMA compatible
Description

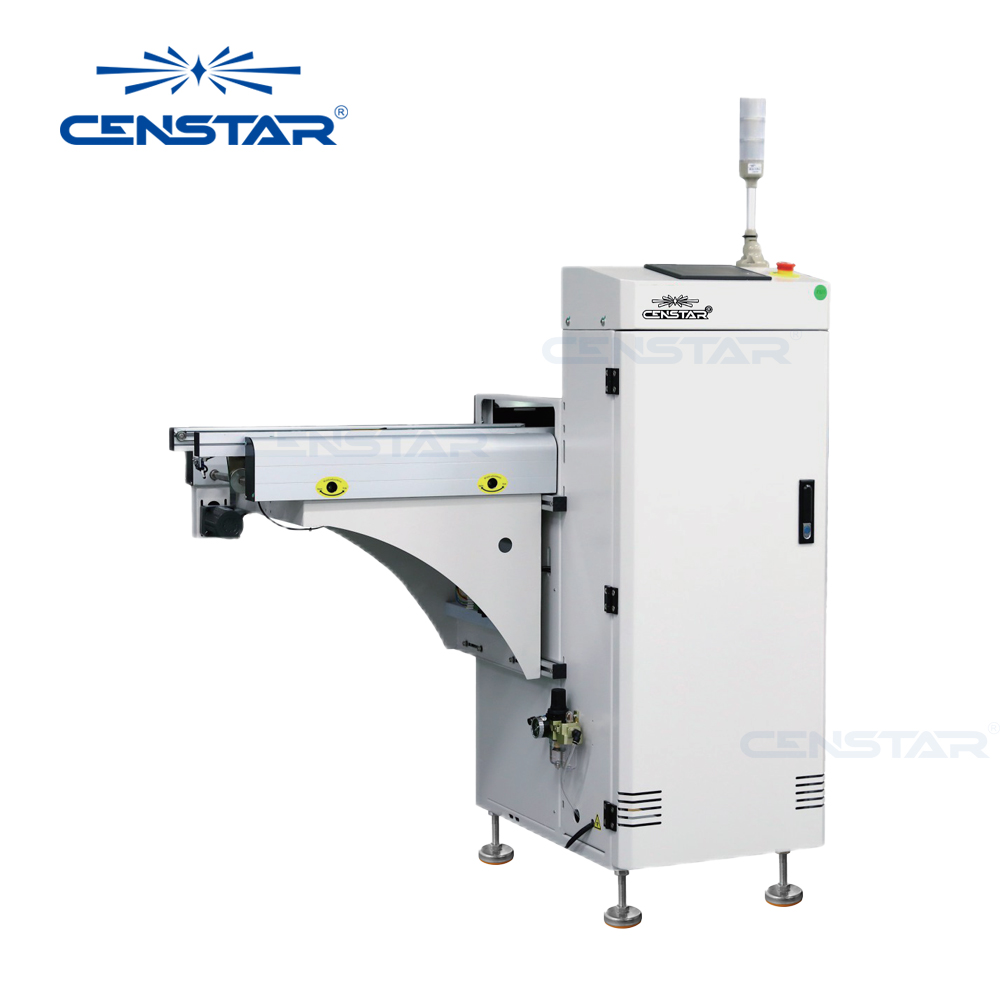

The single automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. The unloader is with the 90 degree to save the SMT production line length as much as possible,it is best for the customer who has the factory space limited.
Technical Parameters
Model | ULF-M-TN | ULF-L-TN | ULF-LL-TN | ULF-XL-TN |
Dimension(L*W*H) | 1150*1150*1205mm | 1350*1350*1205mm | 1550*1550*1205mm | 1550*1780*1205mm |
PCB size(L*W) | 50*80-330*250mm | 50*80-445*330mm | 50*80-530*390mm | 50*80-530*460mm |
Magazine size(L*W*H) | 355*320*563mm | 460*400*563mm | 535*460*563mm | 535*530*563mm |
Transport height | 900±20mm | |||
Transfer direction | L-R or R-L | |||
Operation side | Front of the machine | |||
Fixed rail | Front of the machine | |||
Interface | SMEMA | |||
Conveyor belts | ESD flat belt | |||
Belt speed | 0.5-20m/min adjustable | |||
PCB edge support | 4mm | |||
PCB thinckness | 0.6mm min | |||
Components clearance | 25mm below and above | |||
PCB weight | 2kg max | |||
PCB loading time | Approx 6 seconds | |||
Magazine change-over time | Approx 30 seconds | |||
Pitch distance | 10.20.30.40mm pitch or specify | |||
Magazine capacity | Top 1+Down 1 | |||
Magazine weight | 60kg max | |||
Control | PLC | |||
Power supply | AC220V/110V, 50/60 HZ, 1 phase | |||
Power consumption | 300VA max. or specify | |||
Air supply | 4-6bar | |||
Air consumption | 10ltr/min max | |||
Weight | 160kg | 220kg | 280kg | 320kg |
