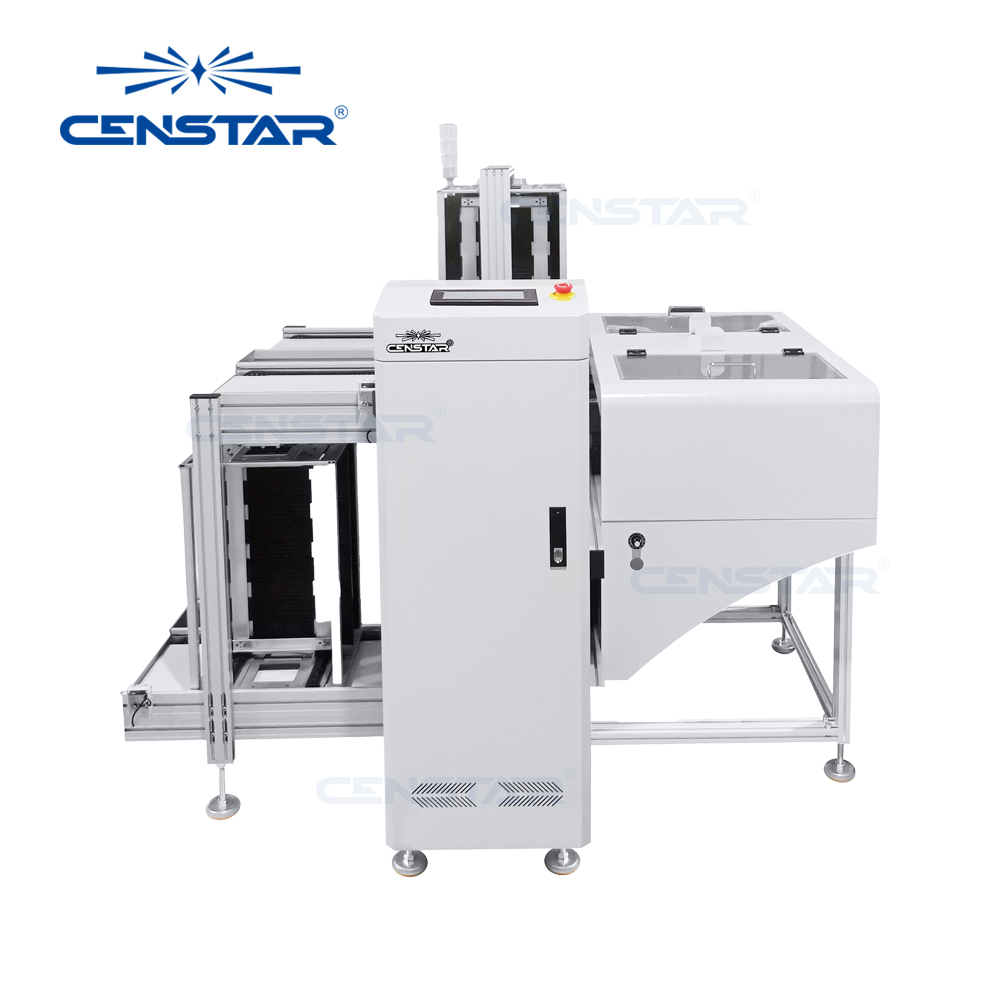

PCB NG OK Magazine Unloader
Loader&Unloader >

PCB NG OK Magazine Unloader

  • Features:

    1.PLC+Screen touch panel control

    2.Magazine capacity: Top 2+Down 2

    3.Selectable pitch settings.

    4.OK or NG board separation.

    5.Unique guide rail driven positioning of shuttle conveyor

    6.Tower-light display for machines working status.

    7.Automatic magazine change-over.

    8.Flexible platform to suit standard magazines.

    9.Exchangeable magazine from the rear of magazine.

    10.Stepper motorized type pusher to enhance working stability.

    11.Magazine infeed and outfeed are automatically driving by motor on the platform.

    12.SMEMA compatible.

    Description

    This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

    Technical Parameters

    ModelNL-M-TNNL-L-TNNL-LL-TNNL-XL-TN
    Dimension(L*W*H)1800*1435*1250mm2065*1690*1250mm2330*1810*1250mm2330*1950*1250mm
    PCB size(L*W)50*80-330*250mm50*80-445*330mm50*80-530*390mm50*80-530*460mm
    Magazine size(L*W*H)355*320*563mm460*400*563mm535*460*563mm535*530*563mm
    Transport height900±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail Front of the machine
    InterfaceSMEMA
    Conveyor belts ESD flat belt
    Belt speed0.5-20m/min adjustable
    PCB edge support4mm
    PCB thinckness0.6mm min
    Components clearance25mm below and above
    PCB weight2kg max
    PCB loading timeApprox 6 seconds
    Magazine change-over timeApprox 30 seconds
    Pitch distance10.20.30.40mm pitch or specify
    Magazine capacity Top 2+Down 2
    Magazine weight 60kg max
    ControlPLC
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption300VA max. or specify
    Air supply4-6bar
    Air consumption10ltr/min max
    Weight310kg340kg370kg400kg
