1.PLC+Screen touch panel control
2.Magazine capacity: Top 2+Down 2.
3.Selectable pitch settings.
4.Dual lane high speed unloader function are selectable in the software.
5.Tower-light display for machines working status.
6.Automatic magazine change-over.
7.Flexible platform to suit standard magazines .
8.Exchangeable magazine from the rear of magazine.
9.Stepper motorized type pusher to enhance working stability.
10.Magazine infeed and outfeed are automatically driving by motor on the platform.
11.SMEMA compatible.
Description

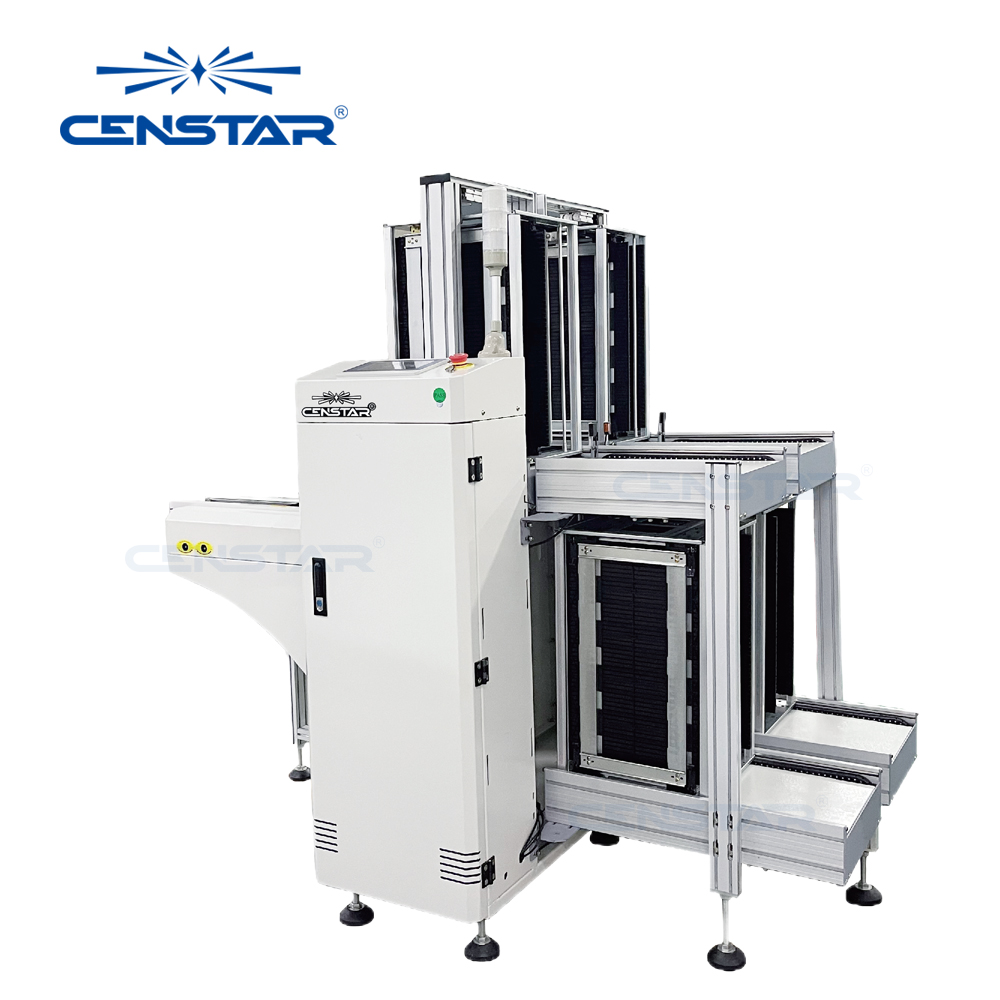

The unit provides automatic magazine change-over for continuous line unloading. PCB's are collected from an upstream pusher conveyor and pushed into the magazine. Full magazines are offl oaded at an ergonomic low level.
Technical Parameters
Model | BH-M-TN | BH-L-TN | BH-LL-TN | BH-XL-TN |
Dimension(L*W*H) | 1800*1435*1250mm | 2065*1690*1250mm | 2330*1810*1250mm | 2330*1950*1250mm |
PCB size(L*W) | 50*80-330*250mm | 50*80-445*330mm | 50*80-530*390mm | 50*80-530*460mm |
Magazine size(L*W*H) | 355*320*563mm | 460*400*563mm | 535*460*563mm | 535*530*563mm |
Transport height | 900±20mm | |||
Transfer direction | L-R or R-L | |||
Operation side | Front of the machine | |||
Fixed rail | Front of the machine | |||
Interface | SMEMA | |||
Conveyor belts | ESD flat belt | |||
Belt speed | 0.5-20m/min adjustable | |||
PCB edge support | 4mm | |||
PCB thinckness | 0.6mm min | |||
Components clearance | 25mm below and above | |||
PCB weight | 2kg max | |||
PCB loading time | Approx 6 seconds | |||
Magazine change-over time | Approx 30 seconds | |||
Pitch distance | 10.20.30.40mm pitch or specify | |||
Magazine capacity | Top 2+Down 2 | |||
Magazine weight | 60kg max | |||
Control | PLC | |||
Power supply | AC220V/110V, 50/60 HZ, 1 phase | |||
Power consumption | 300VA max. or specify | |||
Air supply | 4-6bar | |||
Air consumption | 10ltr/min max | |||
Weight | 320kg | 350kg | 380kg | 410kg |
