1.PLC+Screen touch panel control
2.Buffer in FIFO,LIFO and by-pass mode.
3.Selectable pitch settings.
4.Enclosed construction improve level of safety.
5.The status of each slot can be changed independently.
6.Rack adjustment by motorized,Infeed conveyor by manual.
7.Threshold signal to protect PCB's in upstream rack.
8.Tower-light display for machines working status.
9.Equipped with cooling fans
10.Standard infeed conveyor
11.SMEMA compatible.
Description

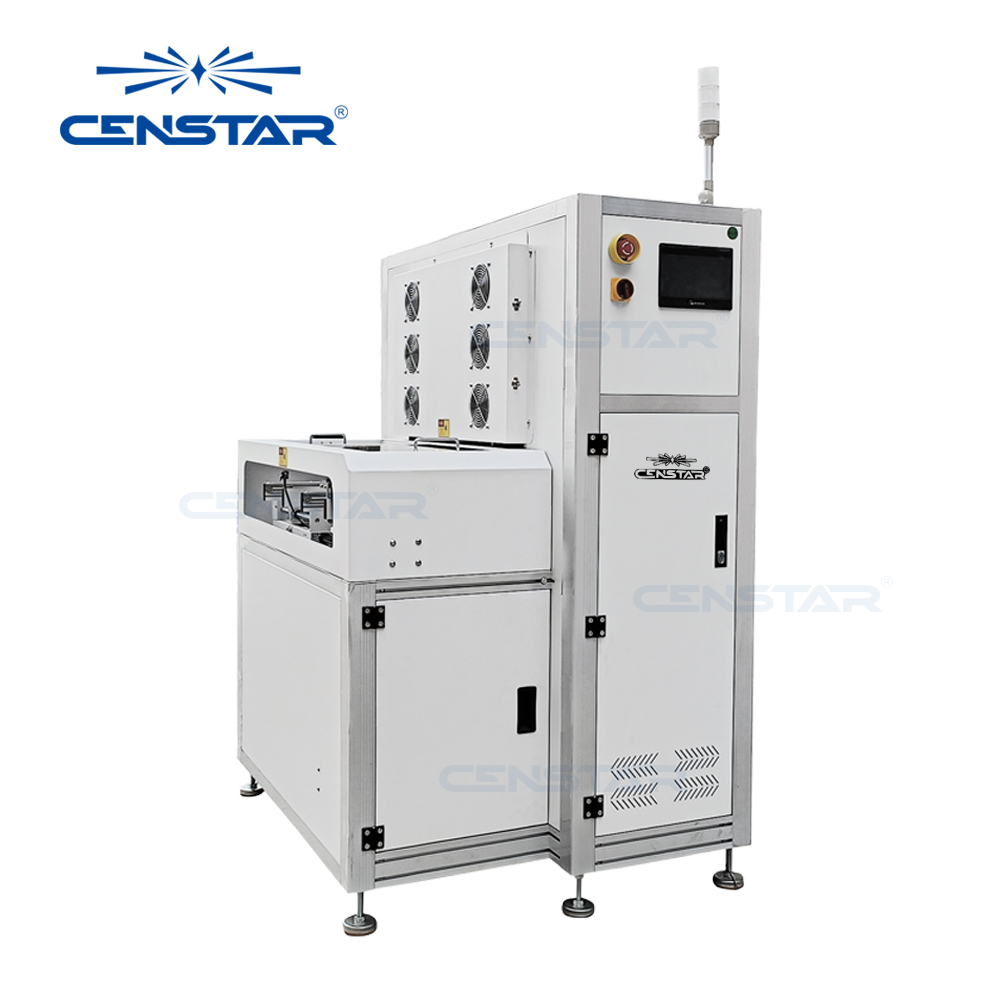

This Buffer is designed to have the function as FIFO/ LIFO and by-pass functions. This unit is located between SMT machines to improve the working efficiency by buffering.
Technical Parameters
| Model | DC-GM-TN | DC-XGM-TN | DC-GGM-TN | DC-GXGM-TN |
| Dimension(L*W*H) | 1000*1346*1640mm | 1200*1346*1640mm | 1500*1346*1640mm | 1800*1346*1640mm |
| PCB size(L*W) | 50*50-445*250mm | 50*50-530*250mm | 50*50-445*250mm | 50*50-530*250mm |
| Transport height | 900±20mm | |||
| Transfer direction | L-R or R-L | |||
| Operation side | Front of the machine | |||
| Fixed rail | 1&4 Rail | |||
| Interface | SMEMA | |||
| Conveyor belts | ESD flat belt | |||
| Belt speed | 0.5-20m/min adjustable | |||
| PCB edge support | 4mm | |||
| PCB thinckness | 0.6mm min | |||
| Components clearance | 25mm below and above | |||
| PCB weight | 2kg max | |||
| Pitch distance | 25mm or specify | |||
| Buffer capacity | 25 PCBs or specify | |||
| Cycle time | Approx 10 Seconds | |||
| Width adjustment method | Rack adjustment by motorized. Infeed conveyor by manual | |||
| Control | PLC | |||
| Power supply | AC220V/110V, 50/60 HZ, 1 phase | |||
| Power consumption | 250VA max. or specify | |||
| Air supply | 4-6bar | |||
| Air consumption | 15ltr/min max | |||
| Weight | 290kg | 340kg | /kg | /kg |
