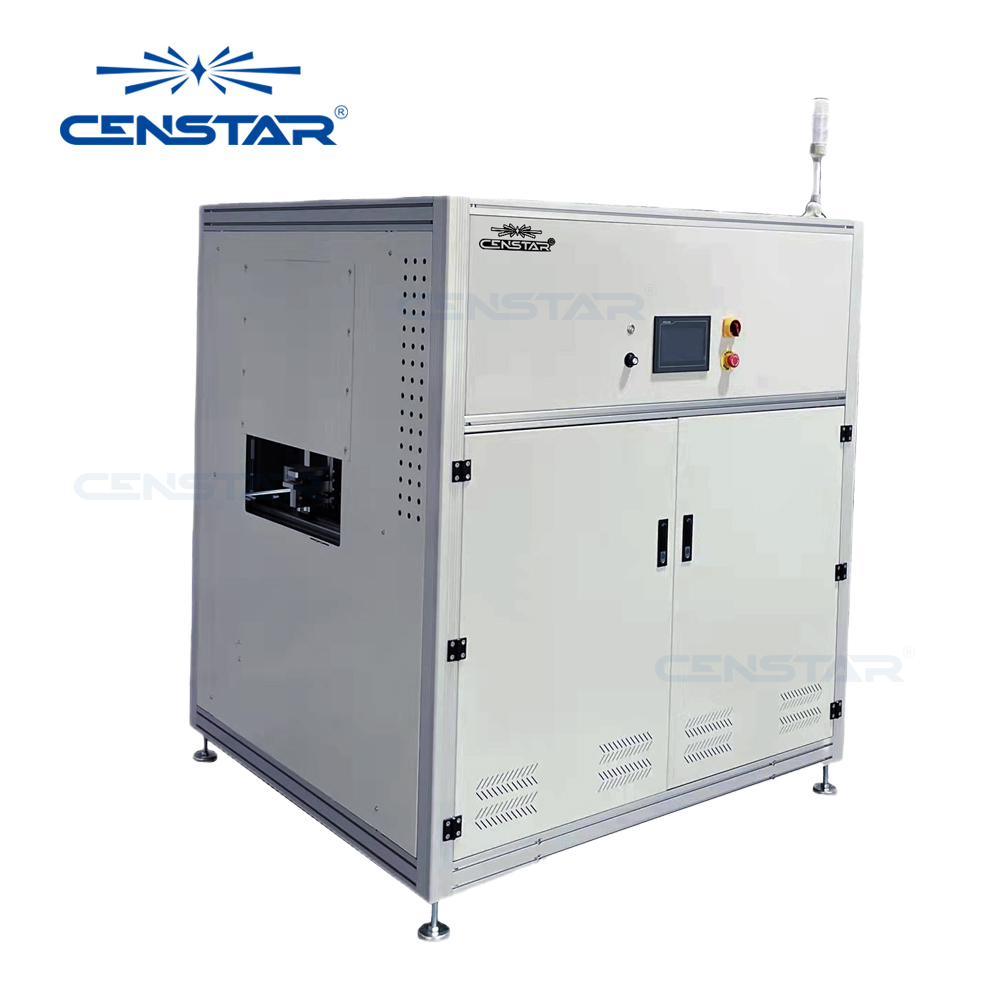

PCB Large Cooling Buffer Conveyor

  • Features:

    1.PLC+Screen touch panel control

    2.Buffer in FIFO,LIFO and by-pass mode.

    3.Use durable rollers for transmission (no need to change belts)

    4.Selectable pitch settings.

    5.Enclosed construction improve level of safety.

    6.The status of each slot can be changed independently.

    7.Rack adjustment by motorized.

    8.Threshold signal to protect PCB's in upstream rack.

    9.Tower-light display for machines working status.

    10.Equipped with cooling fans

    11.SMEMA compatible.

    Description

    This buffer is designed to have the function as FIFO/ LIFO and by-pass functions. This unit is located between SMT machines to improve the working efficiency by buffering.

    Technical Parameters

    ModelBF-L-TN
    Dimension(L*W*H)1500*1495*1760mm
    PCB size(L*W)150*150-1200*350mm
    Transport height900±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail Front of the machine
    InterfaceSMEMA
    Conveyor belts ESD flat belt
    Belt speed0.5-20m/min adjustable
    PCB edge support4mm
    PCB thinckness0.6mm min
    Components clearance25mm below and above
    PCB weight5kg max
    Pitch distance25mm or specify
    Buffer capacity24 PCBs or specify
    Cycle timeApprox 10 Seconds
    Width adjustment method

    Rack adjustment by motorized.

    ControlPLC
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption3000VA max
    Weight300kg
