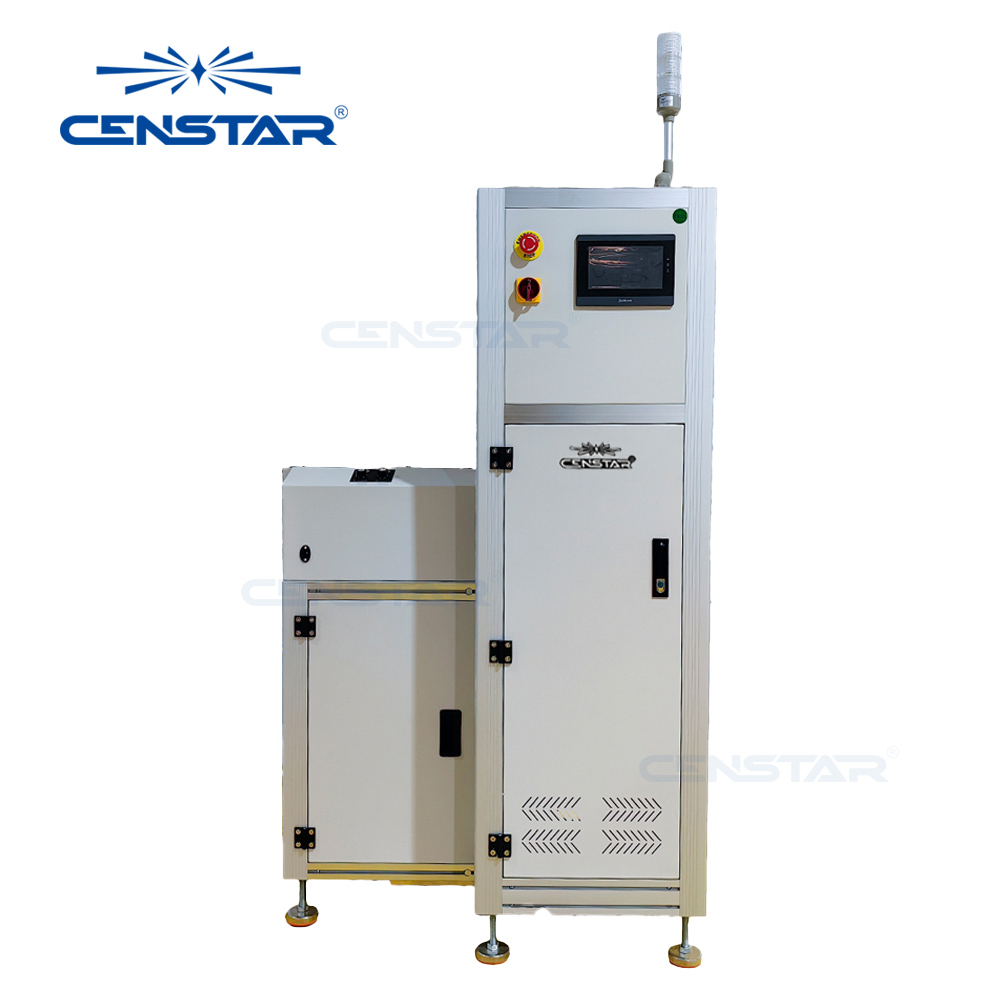

PCB NG OK Buffer Conveyor

Features:

1.PLC+Screen touch panel control

2.Buffer in FIFO,LIFO and by-pass mode.

3.Selectable pitch settings.

4.NG / OK boards can be smartly separated in each layer of conveyor.

5.Enclosed construction improve level of safety.

6.The status of each slot can be changed independently.

7.Rack adjustment by motorized,Infeed conveyor by manual.

8.Threshold signal to protect PCB's in upstream rack.

9.Tower-light display for machines working status.

10.Standard infeed conveyor with inspection station.

11.SMEMA compatible.

Description

This unit is located after SPI/AOI machine to inspect NG boards in the line. The operator can CALL for NG boards stacked in the rack onto the 2TH layer of the conveyor part to inspect them visually while the good boards are being passed through to the downstream machine without any interruption.

Technical Parameters

Model	BN-L-TN	BN-XL-TN	BN-GL-TN	BN-GXL-TN
Dimension(LWH)	10007901640mm	12009001640mm	150013461640mm	18009001640mm
PCB size(L*W)	5050-445350mm	5050-530460mm	5050-445350mm	5050-530460mm
Transport height	900±20mm
Transfer direction	L-R or R-L
Operation side	Front of the machine
Fixed rail	Front of the machine
Interface	SMEMA
Conveyor belts	ESD flat belt
Belt speed	0.5-20m/min adjustable
PCB edge support	4mm
PCB thinckness	0.6mm min
Components clearance	25mm below and above
PCB weight	2kg max
Pitch distance	25mm or specify
Buffer capacity	20 PCBs or specify
Cycle time	Approx 10 Seconds
Width adjustment method	Rack adjustment by motorized. Infeed conveyor by manual
Control	PLC
Power supply	AC220V/110V, 50/60 HZ, 1 phase
Power consumption	250VA max. or specify
Air supply	4-6bar
Air consumption	15ltr/min max
Weight	300kg	330kg	/kg	/kg
