Home >> Products >> SMT Handing Series >> Buffer
1.PLC+Screen touch panel control
2.Buffer in FIFO,LIFO and by-pass mode.
3.Selectable pitch settings.
4.NG / OK boards can be smartly separated in each layer of conveyor.
5.Enclosed construction improve level of safety.
6.The status of each slot can be changed independently.
7.Rack adjustment by motorized,Infeed conveyor by manual.
8.Threshold signal to protect PCB's in upstream rack.
9.Tower-light display for machines working status.
10.Standard infeed conveyor with inspection station.
11.SMEMA compatible.
Description

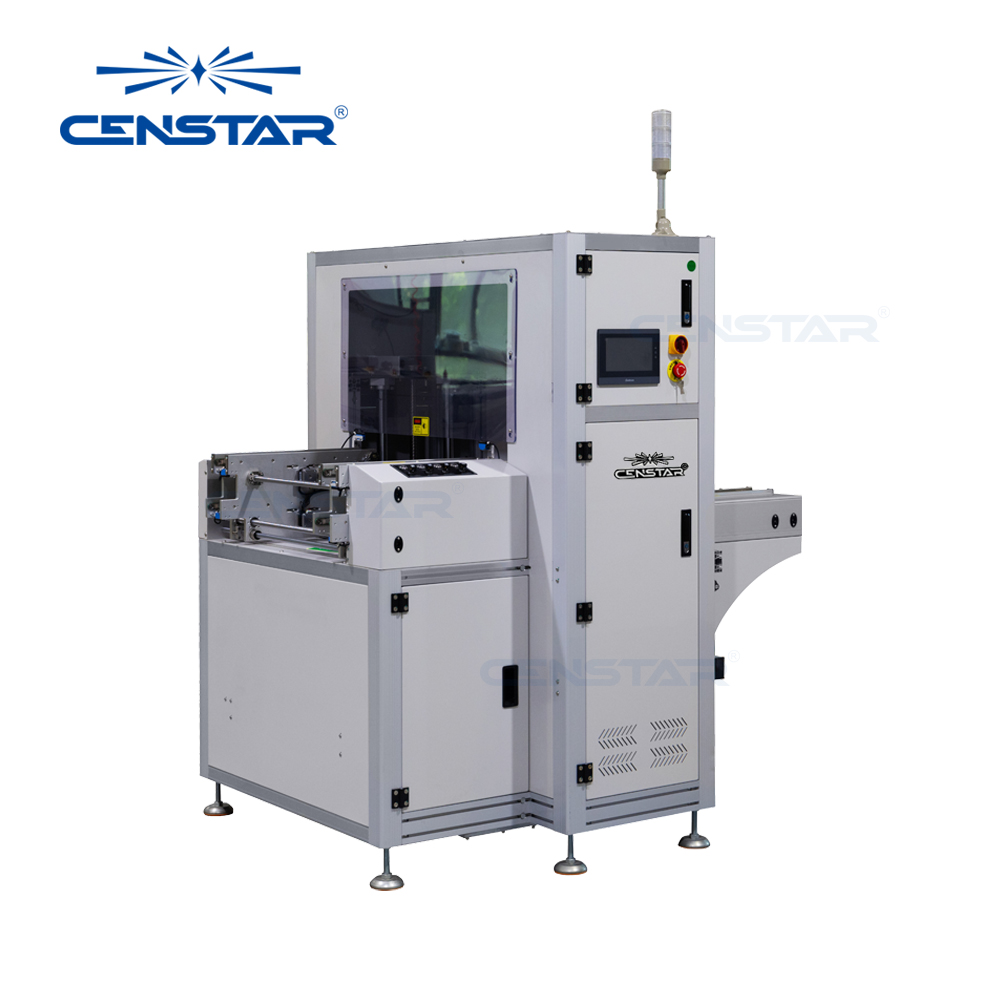

This unit is located after SPI/AOI machine to inspect NG boards in the line. The operator can CALL for NG boards stacked in the rack onto the 2TH layer of the conveyor part to inspect them visually while the good boards are being passed through to the downstream machine without any interruption.
Technical Parameters
| Model | BN-L-TN | BN-XL-TN | BN-GL-TN | BN-GXL-TN |
| Dimension(L*W*H) | 1000*790*1640mm | 1200*900*1640mm | 1500*1346*1640mm | 1800*900*1640mm |
| PCB size(L*W) | 50*50-445*350mm | 50*50-530*460mm | 50*50-445*350mm | 50*50-530*460mm |
| Transport height | 900±20mm | |||
| Transfer direction | L-R or R-L | |||
| Operation side | Front of the machine | |||
| Fixed rail | 1&4 Rails | |||
| Interface | SMEMA | |||
| Conveyor belts | ESD flat belt | |||
| Belt speed | 0.5-20m/min adjustable | |||
| PCB edge support | 4mm | |||
| PCB thinckness | 0.6mm min | |||
| Components clearance | 25mm below and above | |||
| PCB weight | 2kg max | |||
| Pitch distance | 25mm or specify | |||
| Buffer capacity | 20 PCBs or specify | |||
| Width adjustment method | Rack adjustment by motorized. Infeed conveyor by manual | |||
| Control | PLC | |||
| Power supply | AC220V/110V, 50/60 HZ, 1 phase | |||
| Power consumption | 250VA max. or specify | |||
| Air supply | 4-6bar | |||
| Air consumption | 15ltr/min max | |||
| Weight | 400kg | 430kg | /kg | /kg |
