PCB NG Reject Conveyor
Buffer >

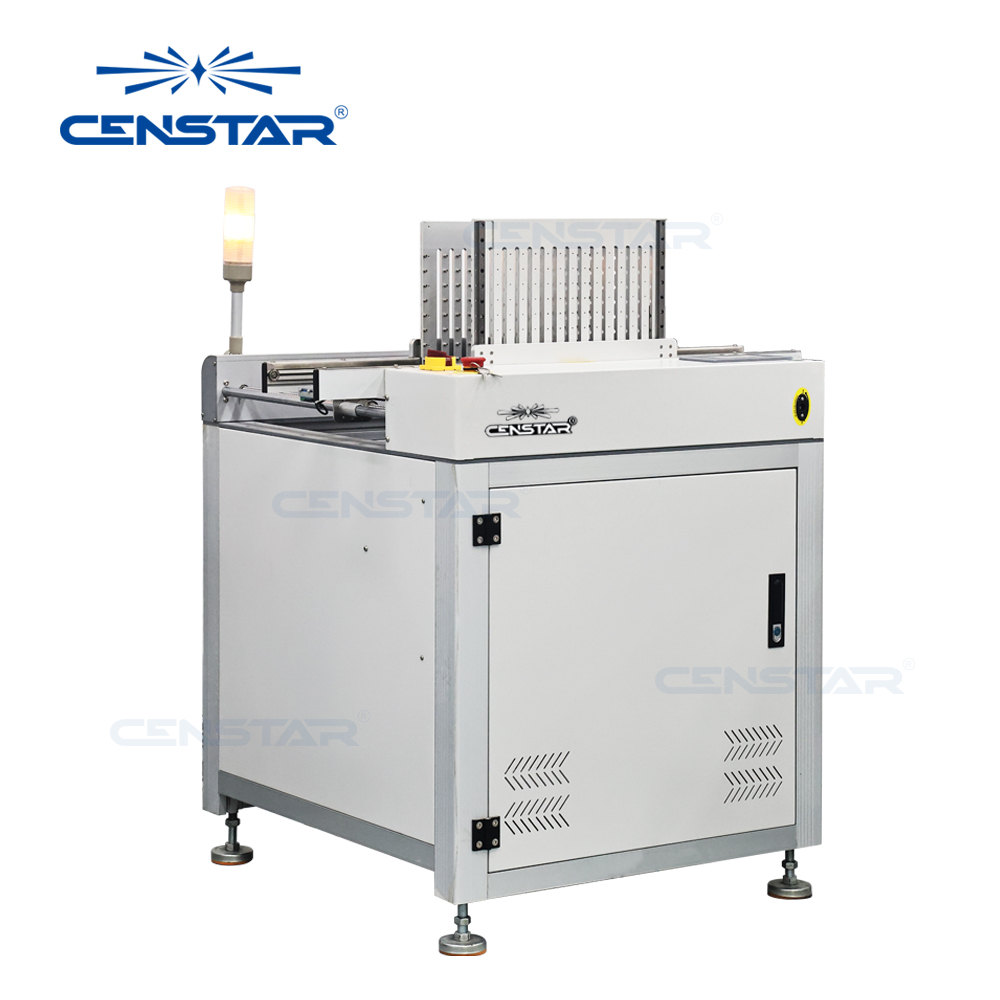

PCB NG Reject Conveyor

    • Features:

    1.PLC+Screen touch panel control

    2.By-pass mode, inspection,NG reject mode selectable .

    3.Selectable pitch settings.

    4.Center PCB stop position.

    5.Heavy bottom design to prevent shifting.

    6.Tower-light display for machines working status.

    7.Total 10 NG PCBs stock capability.

    8.SMEMA compatible .

    Description

    The unit installed after SPI/AOI for separated NG board for visual inspect and good board will pass through without stopping.

    Technical Parameters

    ModelRC-050XL-TNRC-100XL-TNRC-050XL-2TNRC-100XL-2TN
    Dimension(L*W*H)500*793*900mm1000*793*900mm500*1045*900mm1000*1045*900mm
    PCB size(L*W)50*50-460*460mm50*50-530*460mm50*50-460*250mm50*50-530*250mm
    Transport height900±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail
    		Front of the machine
    InterfaceSMEMA
    Conveyor belts ESD flat belt
    Belt speed0.5-20m/min adjustable
    PCB edge support4mm
    PCB thinckness0.6mm min
    Components clearance25mm below and above
    PCB weight2kg max
    Pitch distance25mm or specify
    Buffer capacity10 PCBs or specify
    ControlPLC
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption250VA max. or specify
    Weight70kg105kg110kg150kg
