Home >> Products >> SMT Handing Series >> Buffer
1.PLC+Screen touch panel control
2.By-pass mode, inspection,NG reject mode selectable.
3.Selectable pitch settings.
4.Center PCB stop position.
5.Heavy bottom design to prevent shifting.
6.Tower-light display for machines working status.
7.Total 10 NG PCBs stock capability.
8.SMEMA compatible.
Description

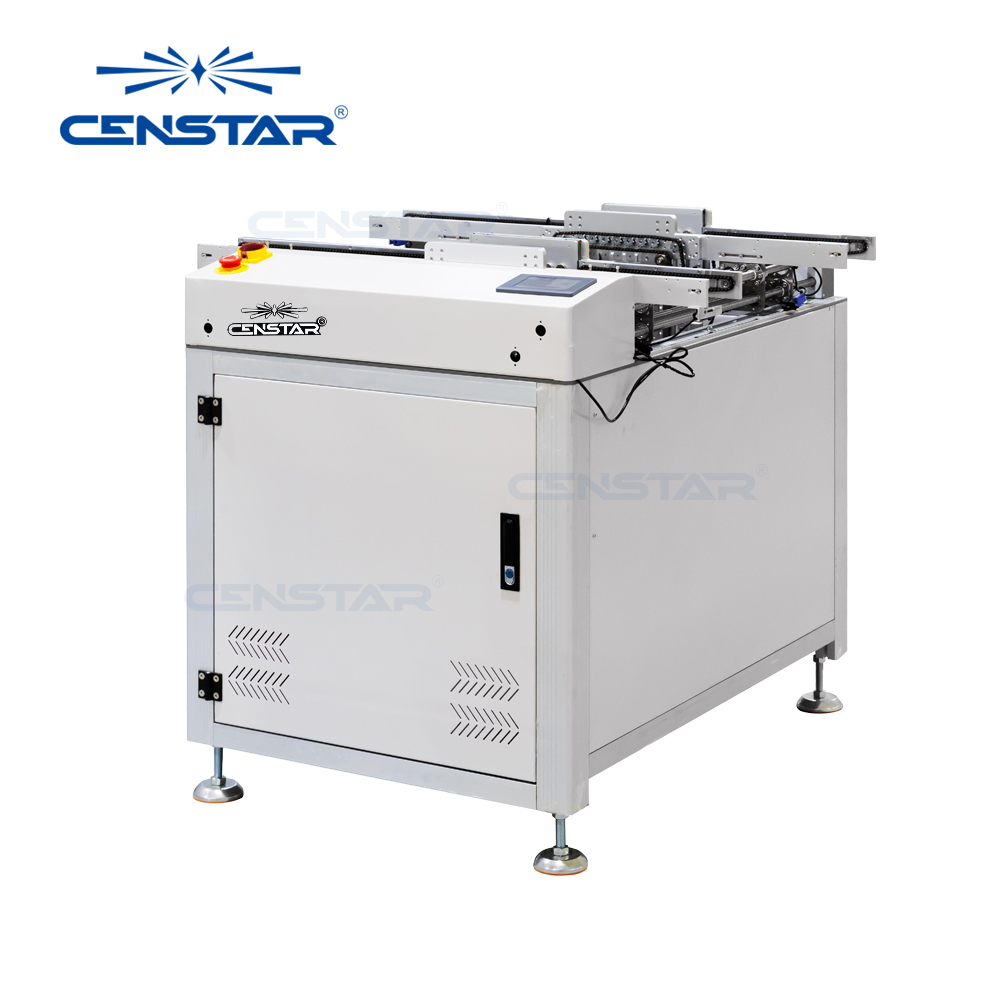

The unit installed after SPI/AOI for separated NG board for visual inspect and good board will pass through without stopping.
Technical Parameters
| Model | RC-050M-TN | RC-060M-TN | RC-080M-TN | RC-100M-TN |
| Dimension(L*W*H) | 500*1045*900mm | 600*1045*900mm | 800*1045*900mm | 1000*1045*900mm |
| PCB size(L*W) | 50*50-460*250mm | 50*50-460*250mm | 50*50-530*250mm | 50*50-530*250mm |
| Transport height | 900±20mm | |||
| Transfer direction | L-R or R-L | |||
| Operation side | Front of the machine | |||
| Fixed rail | 1&4 Rails | |||
| Interface | SMEMA | |||
| Conveyor belts | ESD flat belt | |||
| Belt speed | 0.5-20m/min adjustable | |||
| PCB edge support | 4mm | |||
| PCB thinckness | 0.6mm min | |||
| Components clearance | 25mm below and above | |||
| PCB weight | 2kg max | |||
| Pitch distance | 25mm or specify | |||
| Buffer capacity | 10 PCBs or specify | |||
| Control | PLC | |||
| Power supply | AC220V/110V, 50/60 HZ, 1 phase | |||
| Power consumption | 100VA max. or specify | |||
| Weight | 110kg | 120kg | 140kg | 150kg |
