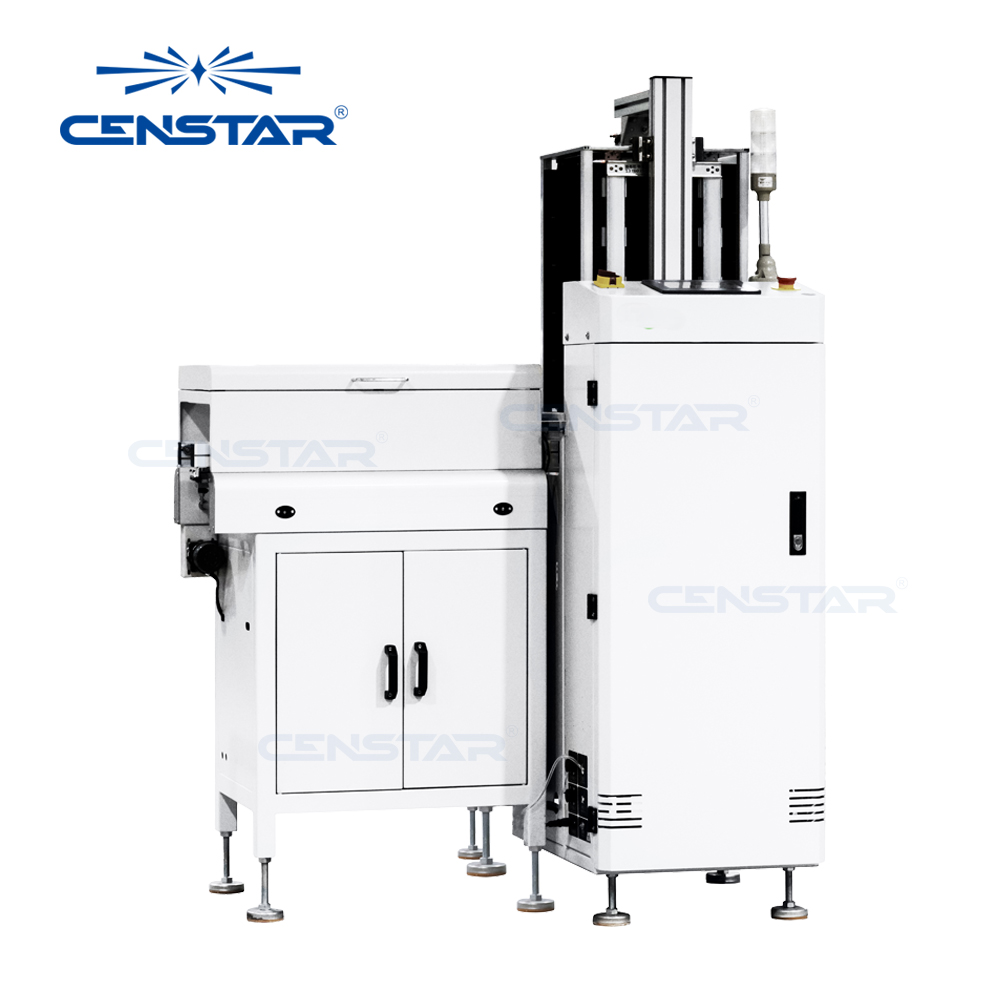

PCB Single Magazine Buffer Conveyor
Buffer >

PCB Single Magazine Buffer Conveyor

  • Features:

    1.PLC+Screen touch panel control

    2.Available working mode loader,unloader,buffering (FIFO,LIFO),By-pass,Reject.

    3.Magazine capacity: Top 1+Down 1.

    4.Selectable pitch settings.

    5.Automatic clamping the magazine by the high quality air cylinder.

    6.Tower-light display for machines working status.

    7.Flexible platform to suit standard magazines.

    8.Exchangeable magazine from the rear of magazine ( single magazine).

    9.Usher position adjustable to Centre for the boards.

    10.Magazine infeed and outfeed are automatically driving by motor on the platform.

    11.SMEMA compatible.

    Description

    The single magazine buffer is designed for loading, unloading, buffering (FIFO, LIFO) of PCBs and By-pass function, reject mode,total 6 working mode.  An arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle.

    Technical Parameters

    ModelBM-M-TNBM-L-TNBM-LL-TNBM-XL-TN
    Dimension(L*W*H)1150*1150*1250mm1350*1350*1250mm1550*1550*1250mm1550*1780*1250mm
    PCB size(L*W)50*80-330*250mm50*80-445*330mm50*80-530*390mm50*50-530*460mm
    Magazine size(L*W*H)355*320*563mm460*400*563mm
    535*460*563mm535*530*563mm
    Transport height900±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail Front of the machine
    InterfaceSMEMA
    Conveyor belts ESD flat belt
    Belt speed0.5-20m/min adjustable
    PCB edge support4mm
    PCB thinckness0.6mm min
    Components clearance25mm below and above
    PCB weight2kg max
    PCB loading timeApprox 10 seconds
    Magazine change-over timeApprox 30 seconds
    Pitch distance10.20.30.40mm pitch or specify
    Magazine capacity

    Top 1+Down 1

    Magazine weight 60kg max
    ControlPLC
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption250VA max. or specify
    Air supply4-6bar
    Air consumption15ltr/min max
    Weight160kg220kg280kg300kg
