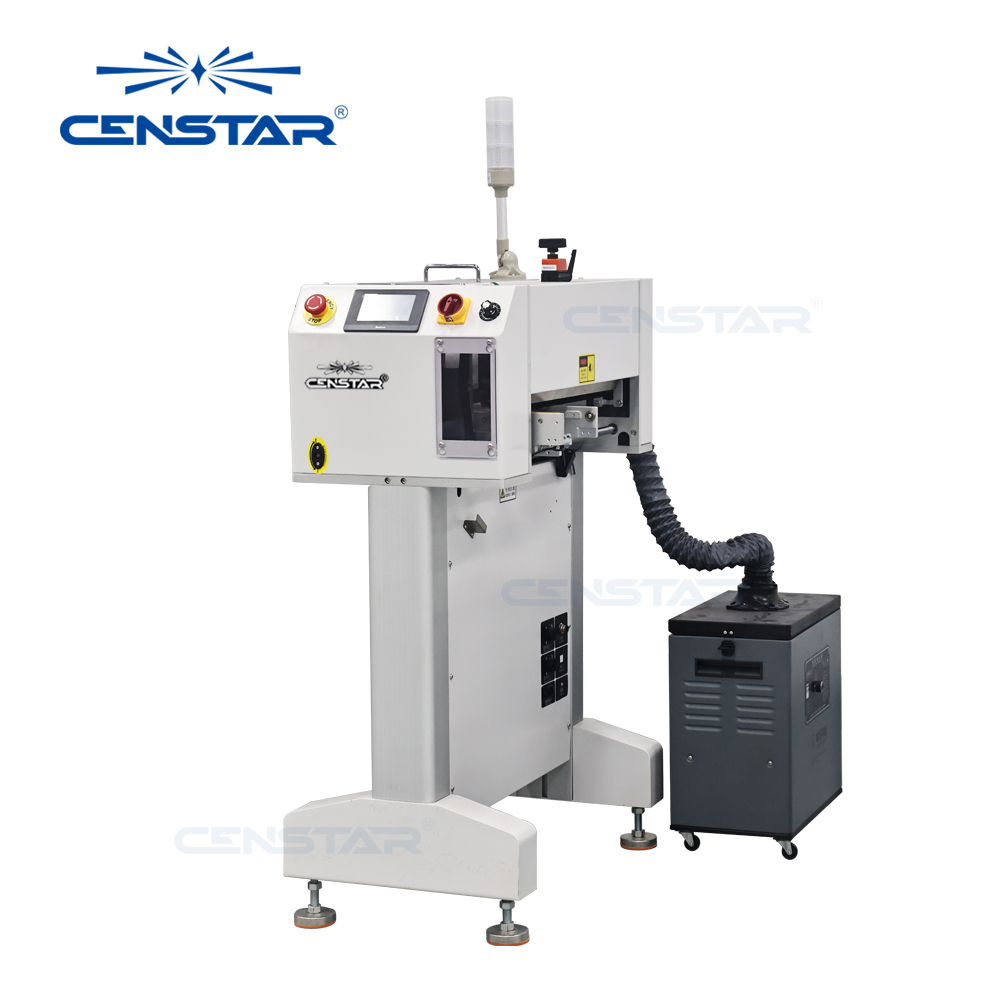

1.PLC+Screen touch panel control
2.On-line automatic clean.
3.Multiple dust removal design: Brush+Vacuum dust collection+Adhesive clean roll+Ionizer , the dust removal efficiency can reach 99%.
4.Vacuum dust collection, the dust removal efficiency can reach 99%
5.Adhesive clean roll removes all dust from rolls.
6.Ionizer removes electric static on the PCB.
7.Draw-out design for Easy changing of adhesive rolls.
8.SMEMA compatible.
Description
The unit provides a 'normal open' passage in a PCB assembly line. An integrated conveyor segment slides across the opening to deliver PCB to downstream machine.
Technical Parameters
| Model | B-QXD02-XL-TN |
| Dimension(L*W*H) | 500*770*1114mm |
| PCB size(L*W) | 50*50-530*460mm |
| Transport height | 900±20mm |
| Transfer direction | L-R or R-L |
| Operation side | Front of the machine |
| Fixed rail | Front of the machine |
| Interface | SMEMA |
| Conveyor belts | ESD flat belt |
| Belt speed | 0.5-9m/min adjustable |
| PCB edge support | 4mm |
| PCB thinckness | 0.6mm-5mm |
| Components clearance | 25mm below |
| PCB weight | 2kg max |
| Control | PLC |
| Power supply | AC220V/110V, 50/60 HZ, 1 phase |
| Power consumption | 300VA max. or specify |
| Air pressure | 4-6bar |
| Air consumption | 10ltr/min max |
| Weight | 100kg |
