1.PLC+Screen touch panel control
2.Closed loop stepper motor providing the accurate transfer
3.Working method:
(1). distribute the boards from one line into two line.
(2). Collect the boards from two line into one line.
(3).Many working modes are selectable in the software.
4.Conveyor width adjustment by hand crank.
5.Shuttle speed setting by software.
6.Cycle time: Depends on traversing distance.
7.SMEMA compatible.
Description

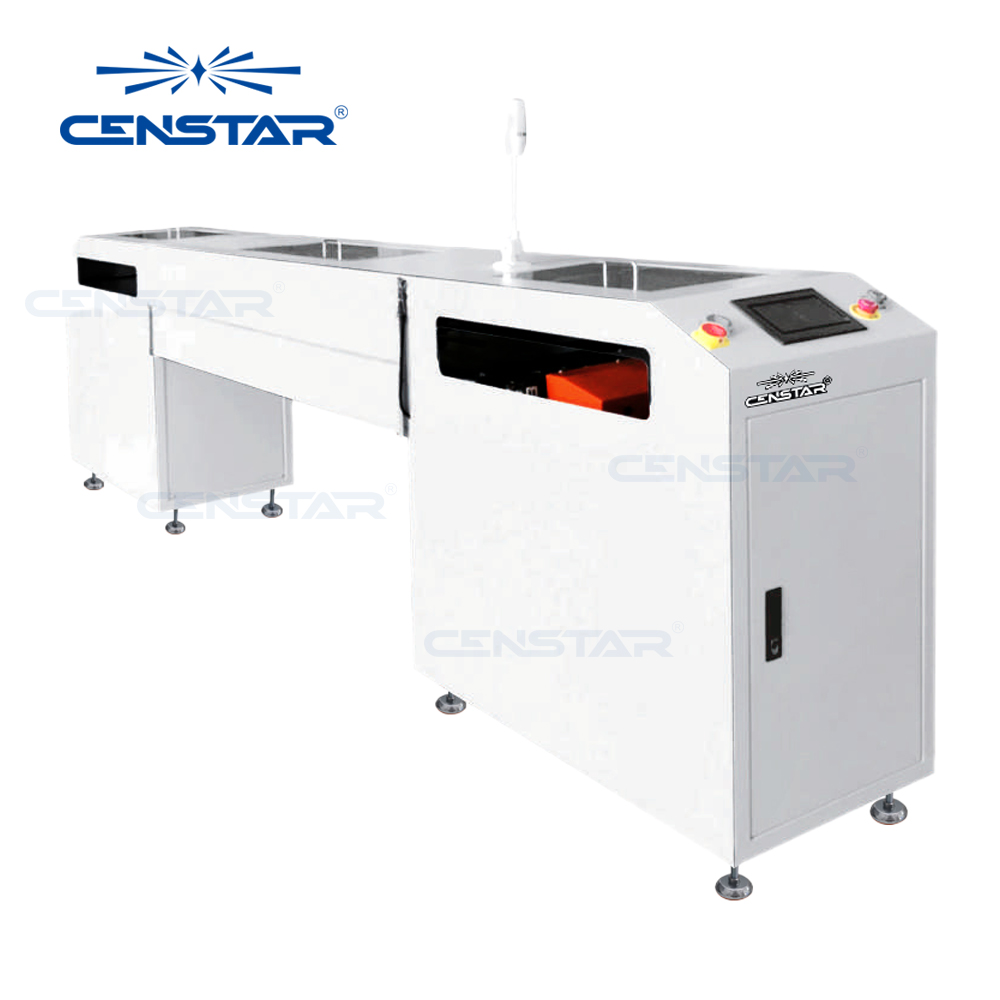

Shuttle Conveyor /Traverser is used to redirect flow of PCBs into different channels in a production line.It is designed to shuttle PCB's to next process. The conveyor can collect PCB's from two lines to one line/ distribute PCB's from one line to two lines.
Technical Parameters
Model | PT-150M-FATN | PT-450L-2ATN |
Dimension(L*W*H) | 500*1500*1050mm | 600*4500*1050mm |
PCB size(L*W) | 50*50-450*350mm | 50*50-550*350mm |
Transport height | 900±20mm | |
Transfer direction | L-R or R-L | |
Operation side | Front of the machine | |
Fixed rail | Front of the machine | |
Interface | SMEMA | |
Conveyor belts | ESD flat belt | |
Belt speed | 0.5-20m/min adjustable | |
PCB edge support | 4mm | |
PCB thinckness | 0.6mm min | |
Components clearance | 25mm below and above | |
PCB weight | 2kg max | |
Transfer car number | Standard single car or specify | |
Cycle time | Depends on traversing distance | |
PCB transfer mode | 2 in 2 out 1 in 2 out 2 in 1 out | |
Control | PLC | |
Power supply | AC220V/110V, 50/60 HZ, 1 phase | |
Power consumption | 250VA max. or specify | |
Weight | 140kg | 280kg |
