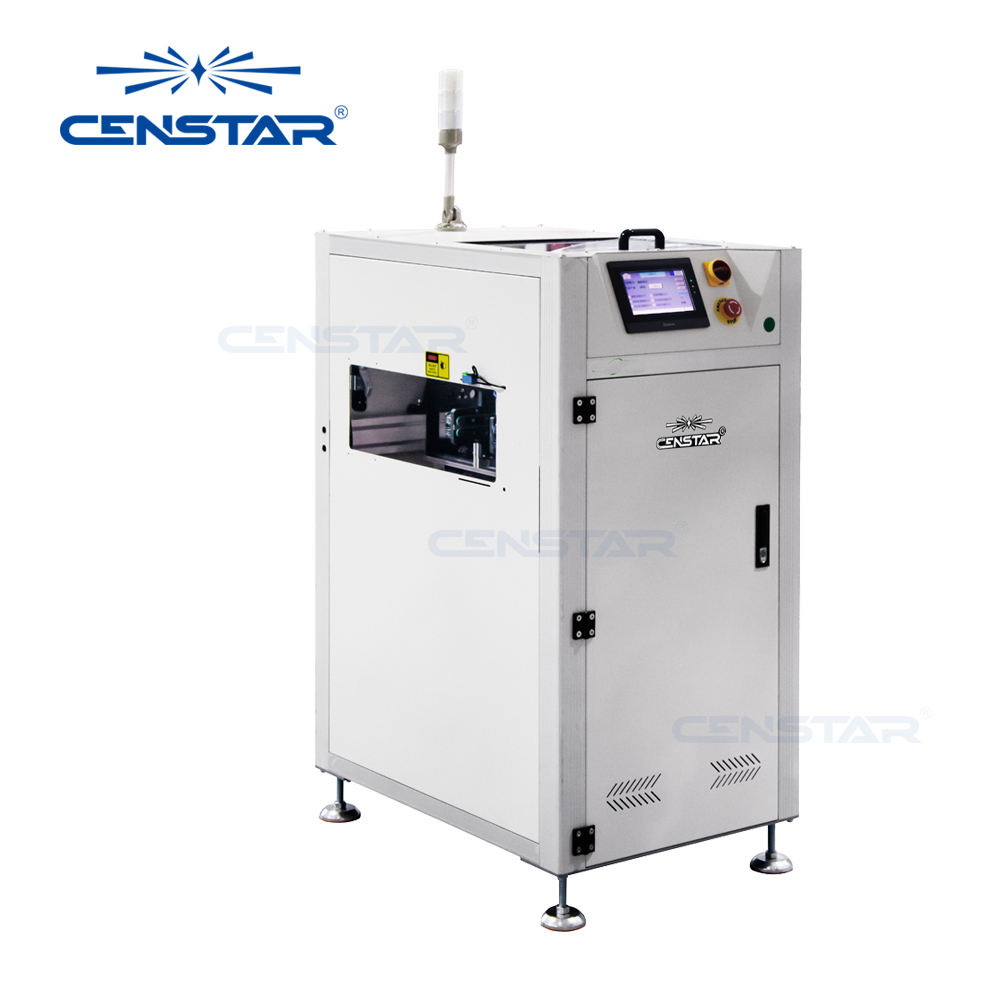

PCB Flip Conveyor
Conveyor Series >

PCB Flip Conveyor

    • Features:

    1.PLC+Screen touch panel control

    2.By-pass mode,Flip mode selectable.

    3.Pneumatic stopper to keep the PCB in position during inverting.

    4.Motorized conveyor width adjustment.

    5.Suitable for boards with many components on the bottom side

    6.Stepper motor providing the rotating driving power

    7.SMEMA compatible

    Description

    This unit is used to inverter flip /PCB’s ( 180 °) for double side process.

    Technical Parameters

    ModelBI-350W-TNBI-460W-TN
    Dimension(L*W*H)500*725*1250mm600*856*1250mm
    PCB size(L*W)50*50-445*350mm50*50-550*460mm
    Transport height900±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail Front of the machine
    InterfaceSMEMA
    Conveyor belts ESD flat belt
    Belt speed0.5-20m/min adjustable
    PCB edge support4mm
    PCB thinckness0.6mm min
    Components clearance25mm below and above
    PCB weight2kg max
    Cycle timeApprox 10 seconds
    ControlPLC
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption150VA max. or specify
    Air pressure4-6bar
    Air consumption1.1ltr/min max
    Weight140kg280kg
