Home >> Products >> SMT Handing Series >> Conveyor Series
1.PLC+Screen touch panel control
2.PCB direction flows can be customized.
3.Towerlight display for machine status.
4.Smooth and precise lifting (brake motor)
5.Conveyor width adjustment using hand crank.
7.SMEMA compatible
Description

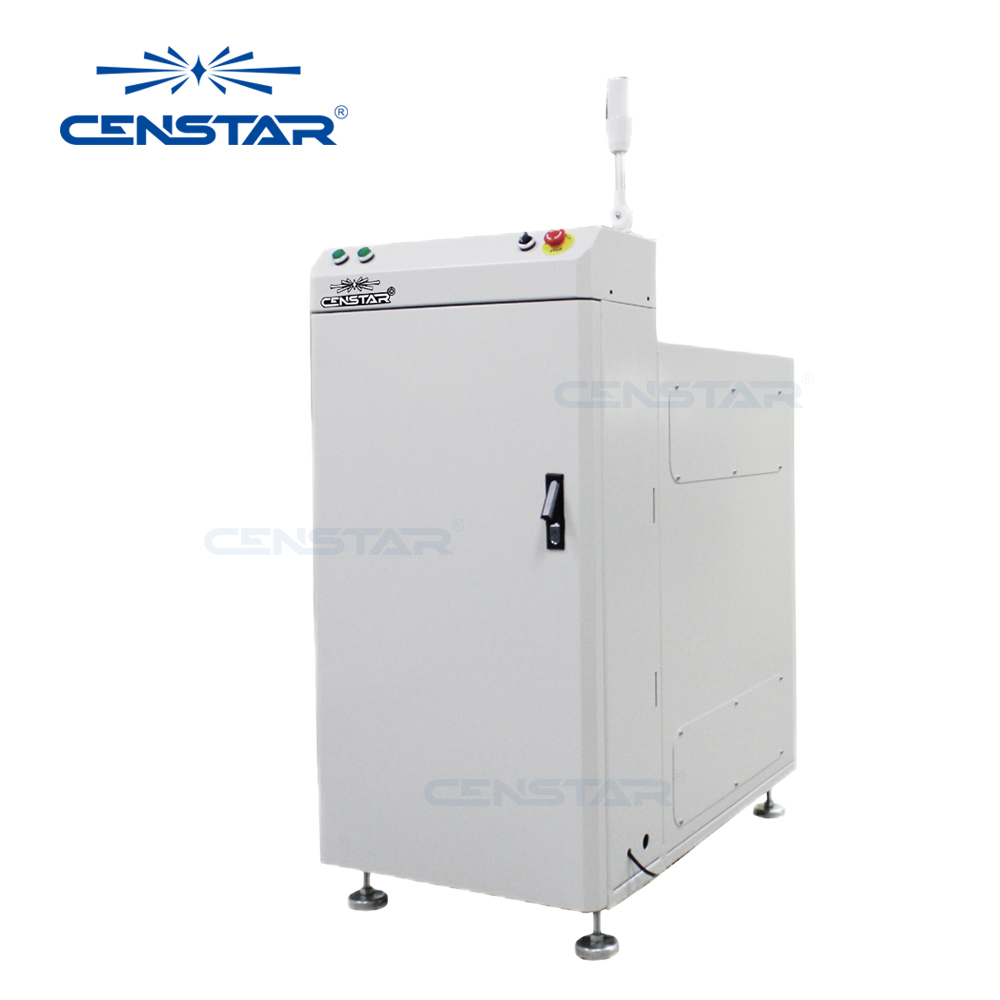

This unit is used to adjust the height direction of the circuit board on the production line to different paths.
Technical Parameters
| Model | PD-L-BN | PD-XL-BN |
| Dimension(L*W*H) | 500*920*Hmm | 600*1050*Hmm |
| PCB size(L*W) | 50*50-460*350mm | 50*50-530*460mm |
| Transport height | 900±20mm | |
| Transfer direction | L-R or R-L | |
| Operation side | Front of the machine | |
| Fixed rail | Front of the machine | |
| Interface | SMEMA | |
| Conveyor belts | ESD flat belt | |
| Belt speed | 0.5-20m/min adjustable | |
| PCB edge support | 4mm | |
| PCB thinckness | 0.6mm min | |
| Components clearance | 25mm below and above | |
| PCB weight | 2kg max | |
| Cycle time | Depends on lifting distance | |
| Control | PLC | |
| Power supply | AC220V/110V, 50/60 HZ, 1 phase | |
| Power consumption | 250VA max. or specify | |
| Weight | 140kg | 200kg |
