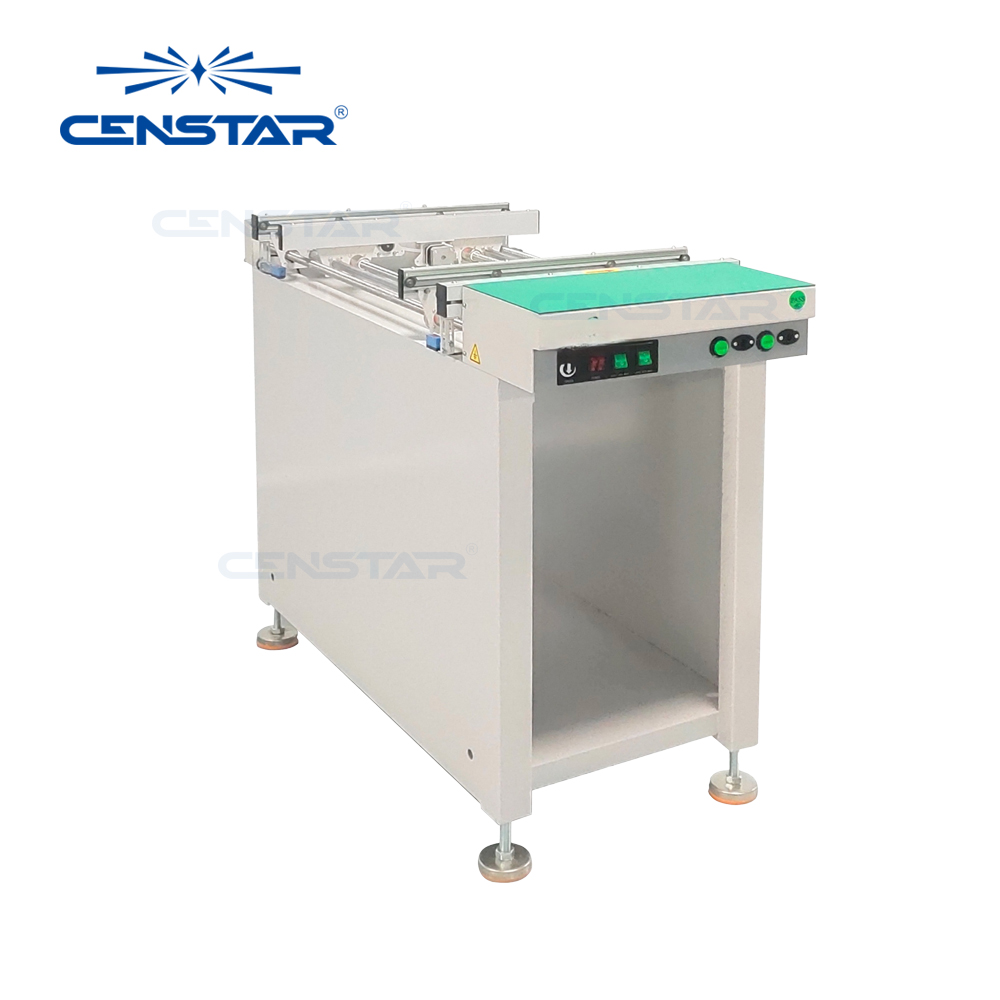

PCB Dual Rail Linking Conveyor
Conveyor Series >

PCB Dual Rail Linking Conveyor

  • Features:

    1.PCB card control.

    2.By-pass mode, inspection mode selectable

    3.Conveyor width adjustment by using hand crank.

    4.Heavy bottom design to prevent shifting.

    5.Conveyor motor is using with stepper motor

    6.PCB flow direction flows can be customized

    7.Smooth and parallel width adjustment.(lead screw).

    8.SMEMA compatible.

    Description

    Using SMEMA interface, this unit successfully links any SMT machine, this system can work on inspection & linking mode.

    Technical Parameters

    ModelDC-050M-NDC-100M-N
    Dimension(L*W*H)500*1046*900mm1000*1046*900mm
    PCB size(L*W)50*50-330*250mm50*50-330*250mm
    Transport height900±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail
    Front of the machine
    InterfaceSMEMA
    Conveyor belts ESD flat belt
    Belt speed0.5-20m/min adjustable
    PCB edge support4mm
    PCB thinckness0.6mm min
    Components clearance25mm below
    PCB weight2kg max
    ControlPCB card
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption100VA max. or specify
    Weight80kg95kg
