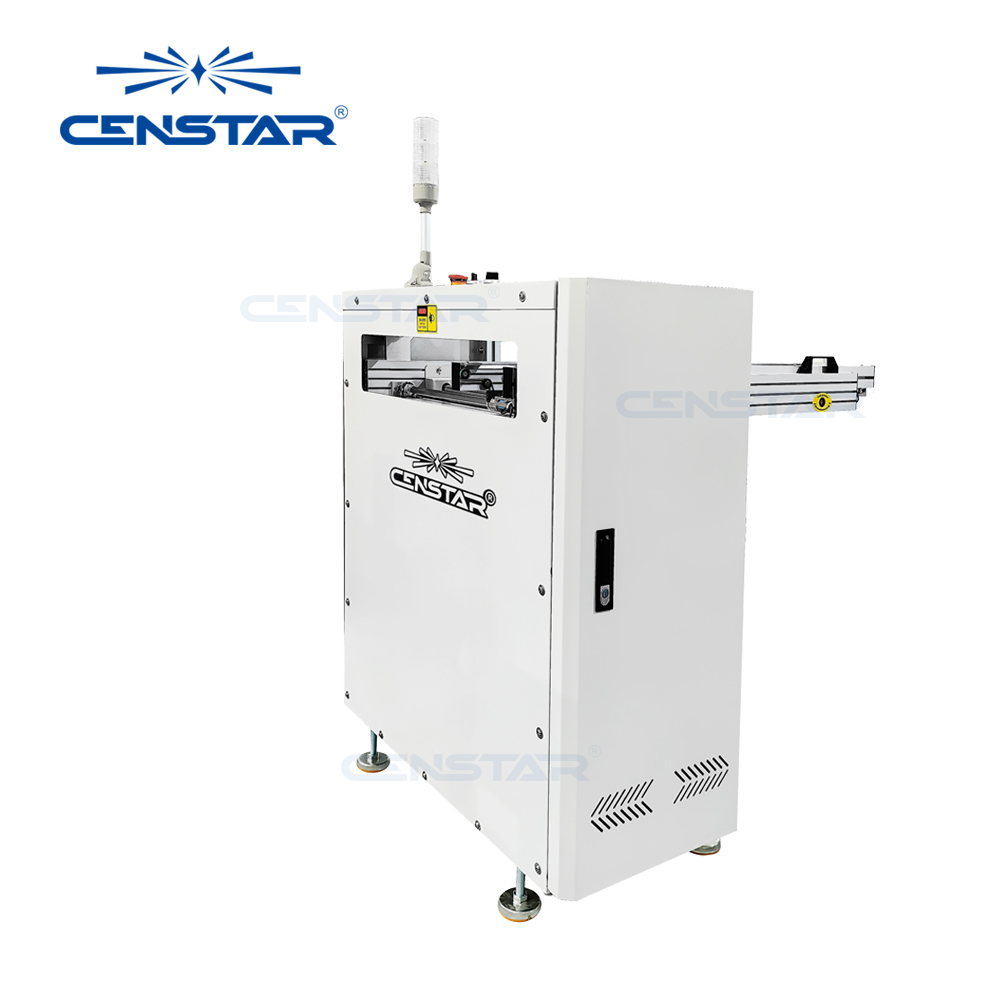

PCB Manual Lift Gate Conveyor
Conveyor Series >

PCB Manual Lift Gate Conveyor

    • Features:

    1.PLC Program control.

    2.Locking cylinder to avoid opening during PCB transfer.

    3.Ergonomic air pressure supported opening and closing.

    4.Conveyor width adjustment by using hand crank.

    5.PCB flow direction flows can be customized

    6.SMEMA compatible

    Description

    By manual lifting the conveyor section, access is gained to the rear of the line.

    Technical Parameters

    ModelGC-460W-N
    Dimension(L*W*H)1000*860*1050mm
    PCB size(L*W)50*50-530*460mm
    Transport height900±20mm
    Transfer directionL-R or R-L
    Operation sideFront of the machine
    Fixed rail Front of the machine
    InterfaceSMEMA
    Conveyor belts ESD flat belt
    Belt speed0.5-20m/min adjustable
    PCB edge support4mm
    PCB thinckness0.6mm min
    Components clearance25mm below
    PCB weight2kg max
    Passageway650mm or specify
    ControlPLC
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption100VA max. or specify
    Air supply4-6bar
    Air consumption48ltr/min max
    Weight200kg
