1.PLC+Screen touch panel control
2.Maximum.700mm passage distance
3.Fully enclosed design.
4.Normal Opened
5.Electrically driven for smooth extension and retraction.
6.Smooth and parallel width adjustment.(lead screw).
7.SMEMA compatible.
Description

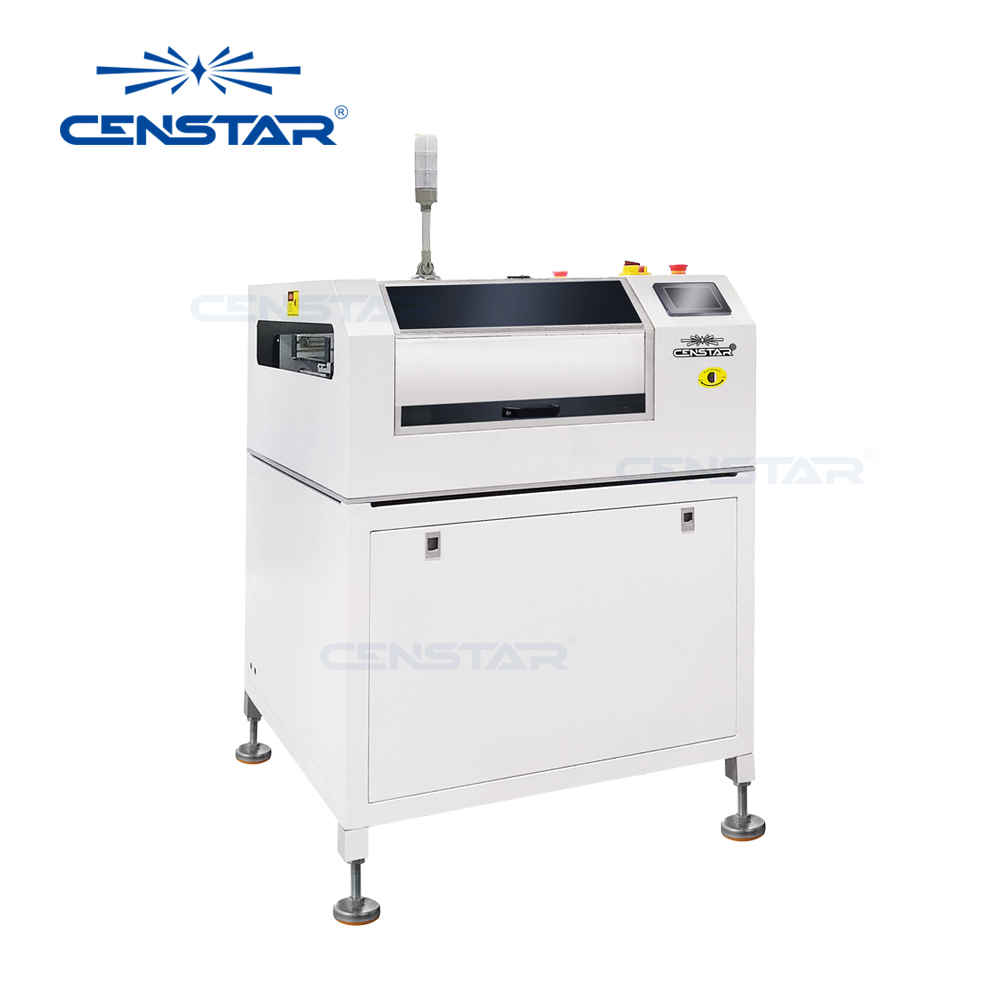

The unit provides a 'normal open' passage in a PCB assembly line. An integrated conveyor segment slides across the opening to deliver PCB to downstream machine.
Technical Parameters
| Model | AC-460W-N |
| Dimension(L*W*H) | 1500*760*1050mm |
| PCB size(L*W) | 50*50-530*460mm |
| Transport height | 900±20mm |
| Transfer direction | L-R or R-L |
| Operation side | Front of the machine |
| Fixed rail | Front of the machine |
| Interface | SMEMA |
| Conveyor belts | ESD flat belt |
| Belt speed | 0.5-20m/min adjustable |
| PCB edge support | 4mm |
| PCB thinckness | 0.6mm min |
| Components clearance | 25mm below |
| PCB weight | 2kg max |
| Passageway | 700mm or specify |
| Control | PLC |
| Power supply | AC220V/110V, 50/60 HZ, 1 phase |
| Power consumption | 200VA max. or specify |
| Weight | 230kg |
