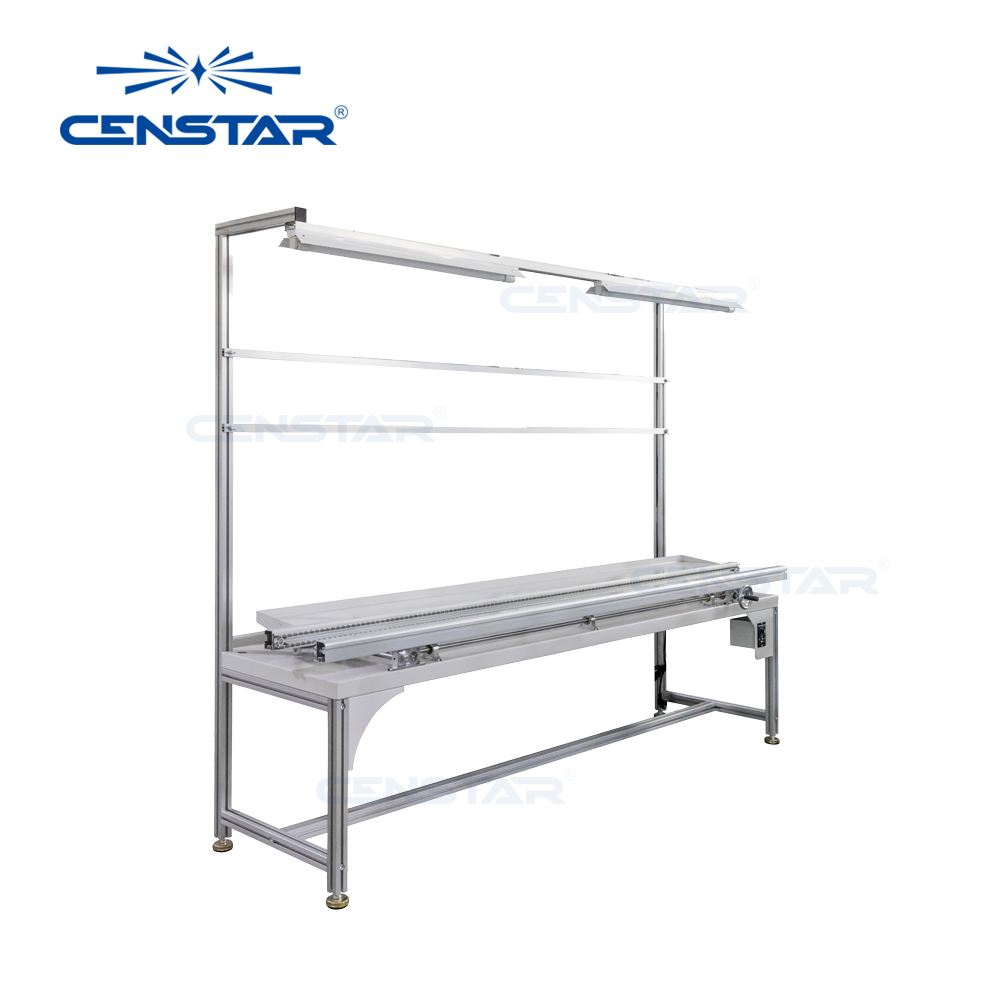

Insertion Conveyor
DIP Handling Series >

Insertion Conveyor

    • Features:

    1.Aluminum conveying guide rail.

    2.Conveyor width adjustment using hand crank.

    3.Conveying motor driven by invertor.

    4.Equipped with LED light.

    5.Equipped with 2 component trays.

    6.Equipped with process card bracket.

    7.35B nylon roller chain.

    Description

    This unit is used to transport PCB and pallet for electronical production assembly line.

    Technical Parameters

    ModelIC-350-EIC-460-EIC-350-FIC-460-F
    Dimension(L*W*H)1175*1000*1080mm2400*710*1950mm3000*600*1950mm3000*710*1950mm
    PCB size(L*W)80*50-310*120mm50-460mm50-350mm50-460mm
    Transport height750±20mm
    Transfer directionL-R or R-L(Option)
    Operation sideFront of the machine
    Fixed rail Front of the machine
    Conveyor belts 35B nylon roller chain
    Belt speed0-5m/min adjustable
    PCB edge support5mm
    PCB weight5kg max
    Power supplyAC220V/110V, 50/60 HZ, 1 phase
    Power consumption100VA max. or specify
    Weight85kg90kg90kg95kg
