1.800mm Aluminum conveying guide rail.
2.35B nylon roller chain.
3.Conveying motor with speed controller.
4.Smooth and parallel width adjustment.(lead screw).
Description

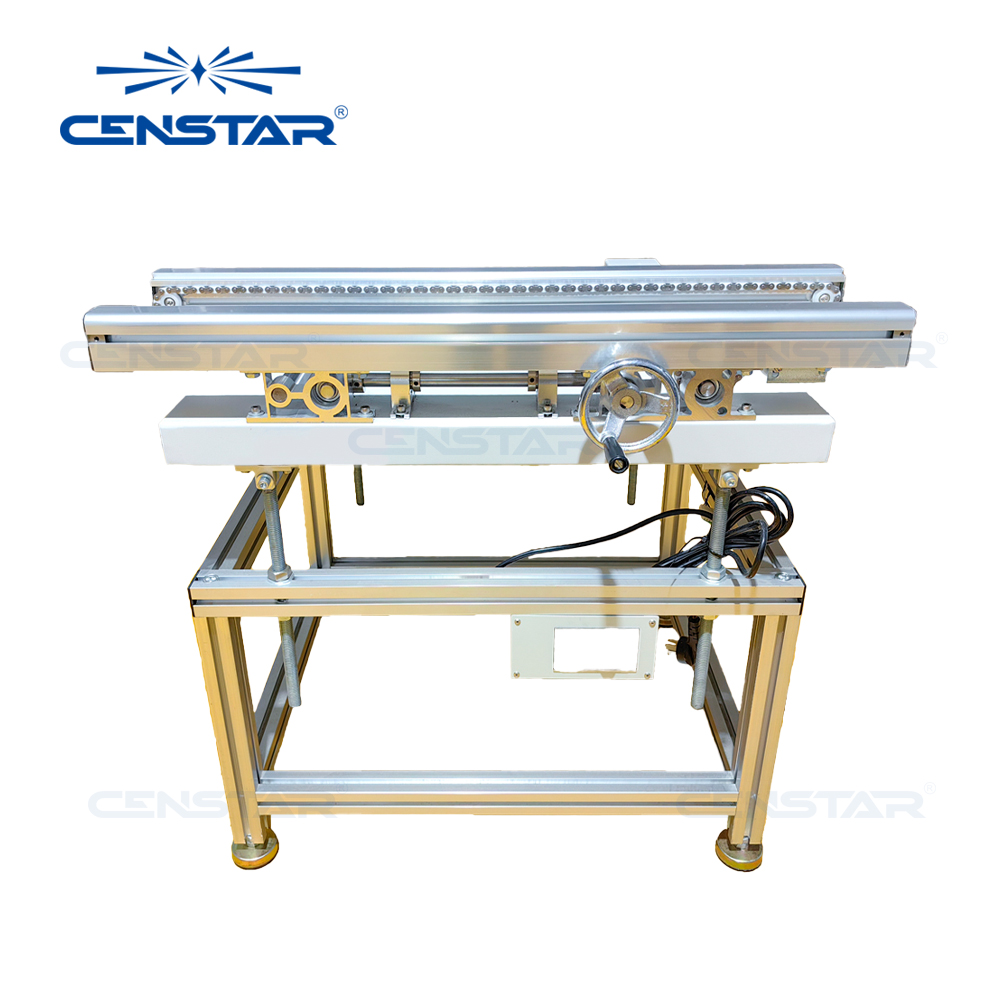

This conveyor is used to unload PCB’s or pallets from a wave soldering machine with adjustable angle. Decline section presents PCB/pallet at standard height to downstream machine.
Technical Parameters
| Model | BF-L-BN | BF-XL-BN |
| Dimension(L*W*H) | 800*600*750mm | 800*700*750mm |
| PCB size(L*W) | 50*50-445*350mm | 50*50-530*460mm |
| Transport height | 750±20mm | |
| Transfer direction | L-R or R-L(Option) | |
| Operation side | Front of the machine | |
| Fixed rail | Front of the machine | |
| Conveyor belts | 35B nylon roller chain | |
| Belt speed | 0-2000mm/min adjustable | |
| PCB edge support | 5mm | |
| PCB weight | 5kg max | |
| Power supply | AC220V/110V, 50/60 HZ, 1 phase | |
| Power consumption | 100VA max | |
| Weight | 35kg | 45kg |
