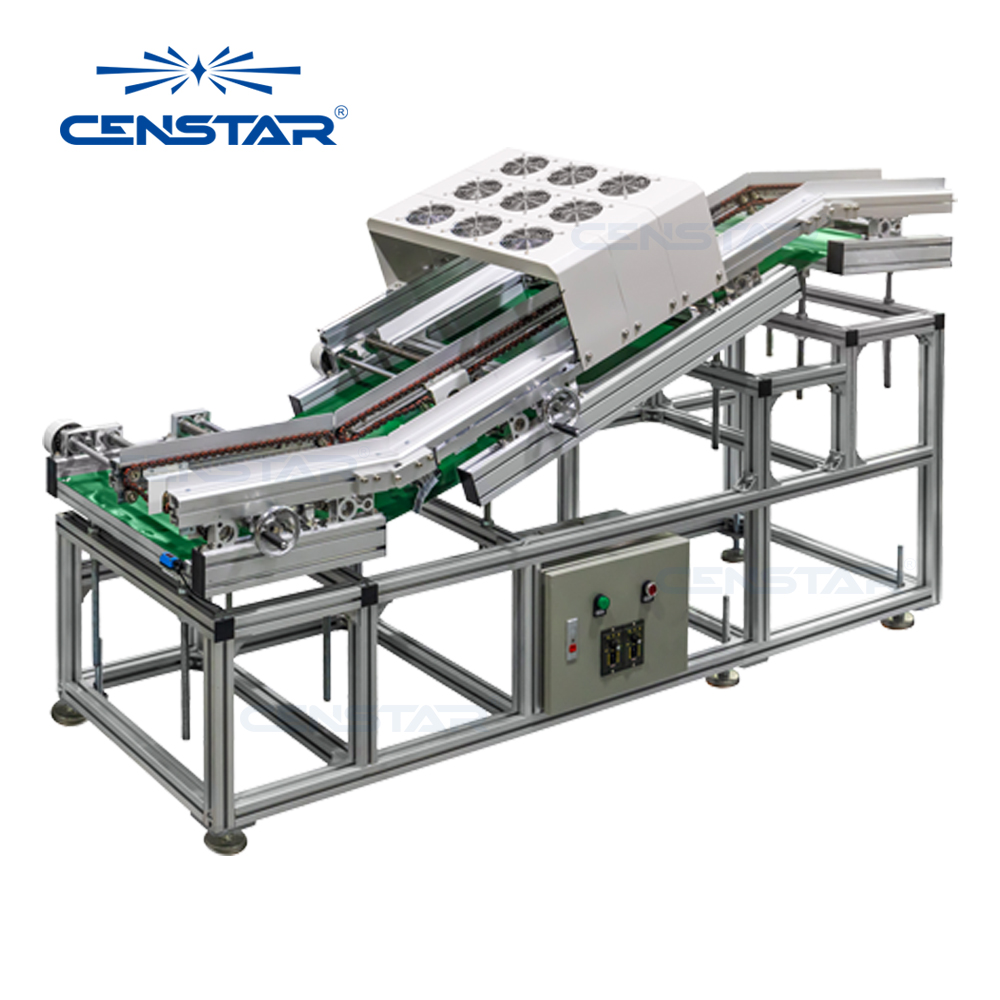

DIP Outfeed Conveyor-Chain

Features:

1.Speed, the angle of the guide rail, height can be adjusted, flexible.

2.Special chain transmission makes product transmission efficiency more secure.

3.Using in the THT production line, connect the wave soldering machine and the plug-in lines. Unload the PCBA assembly after the soldering.

4.The cooling fan can be set to cool down the PCB board.

5.Smooth and parallel width adjustment.(lead screw).

6.SMEMA compatible.

Description

This unit is special for the unloading of PCB from the wave soldering machine.

Technical Parameters

Model	UB-350-N	UB-450-N
Dimension(LWH)	22004851400mm	22006001400mm
PCB size(L*W)	5050-445350mm	5050-450450mm
Transport height	Input 1100-1350mm adjustable Output 700-950mm adjustabl
Transfer direction	L-R or R-L
Operation side	Front of the machine
Fixed rail	Front of the machine
Conveyor belts	Chain
Belt speed	0-5000mm/min adjustable
PCB thinckness	0.6mm-5mm
PCB weight	5kg max
Power supply	AC220V/110V, 50/60 HZ, 1 phase
Power consumption	100VA max. or specify
Weight	80kg	85kg
