Home >> Products >> DIP Handling Series
1.Aluminum conveying guide rail.
2.400mm width ESD belt.
3.Conveying motor driven.
4.Equipped with LED light.
5.Equipped with multifuction socket.
6.Equipped with tool storage plate.
Description

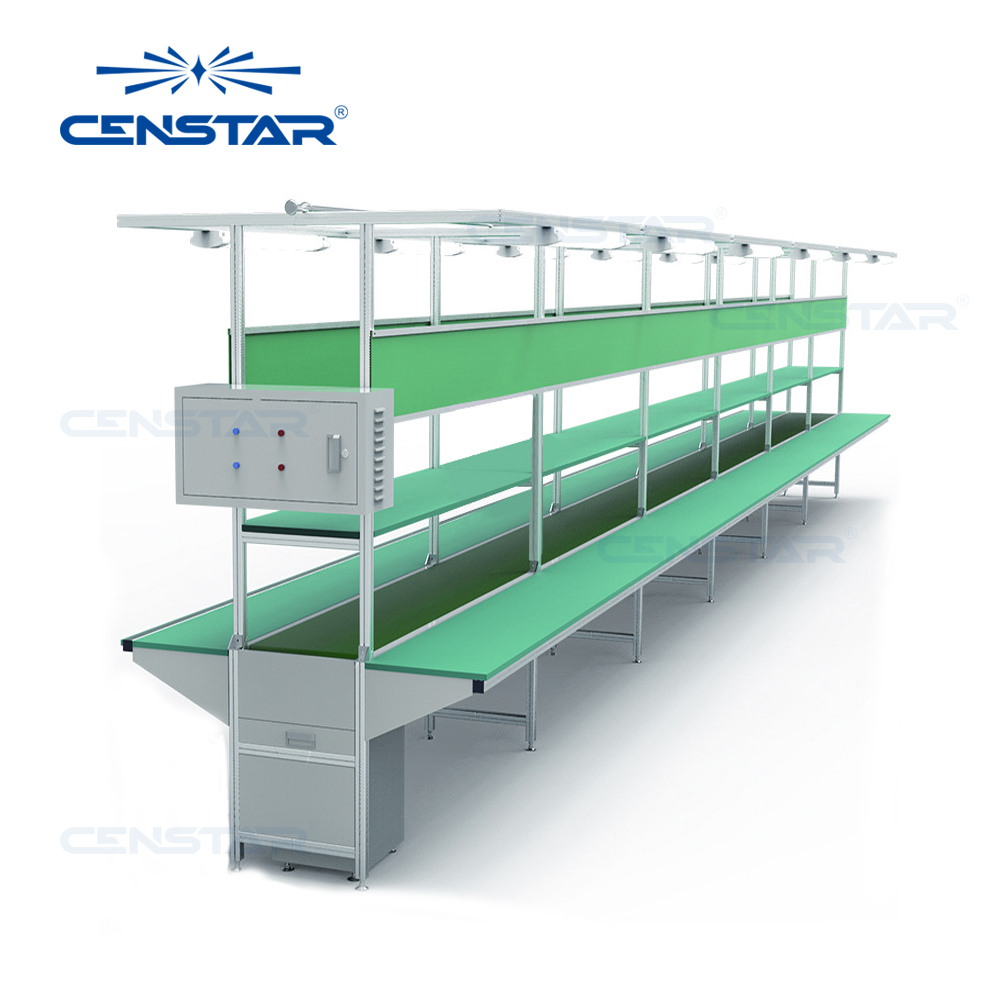

This unit is used to transport PCB and pallet for electronical production assembly line.
Technical Parameters
| Model | BC-2m | BC -5m | BC -6m | BC-10m |
| Dimension(L*W*H) | 2000*1100*1900mm | 5000*1100*1900mm | 6000*1100*1900mm | 100000*1100*1900mm |
| PCB size(L*W) | 50-400mm | |||
| Transport height | 750±20mm | |||
| Transfer direction | L-R or R-L(Option) | |||
| Operation side | 2 sides of the machine | |||
| Operation side width | 300mm or specify | |||
| Conveyor belts | ESD PVC belt | |||
| Conveyor belt width | 400mm or specify | |||
| Belt speed | 0.5-20m/min | |||
| Lighting part | LED light | |||
| Power supply | AC 110V or 220V ; single phase or AC3Φ380V,50HZ | |||
| Weight | Based on the actual weight | |||
