1.PLC+Screen touch panel control
2.Feeding method adopts stepping motor
3.Towerlight display for machine status.
4.Lifting and shifting are controlled by servo motors, and the lifting and shifting distance can be set arbit
5.The magazine change method adopts platform multi magazine storage, with single magazine feeding and multi magazine simultaneous feeding function;
6.Mechanical clamping type magazine positioning method, which can freely adjust different sizes of macine.
7.SMEMA compatible.
Description

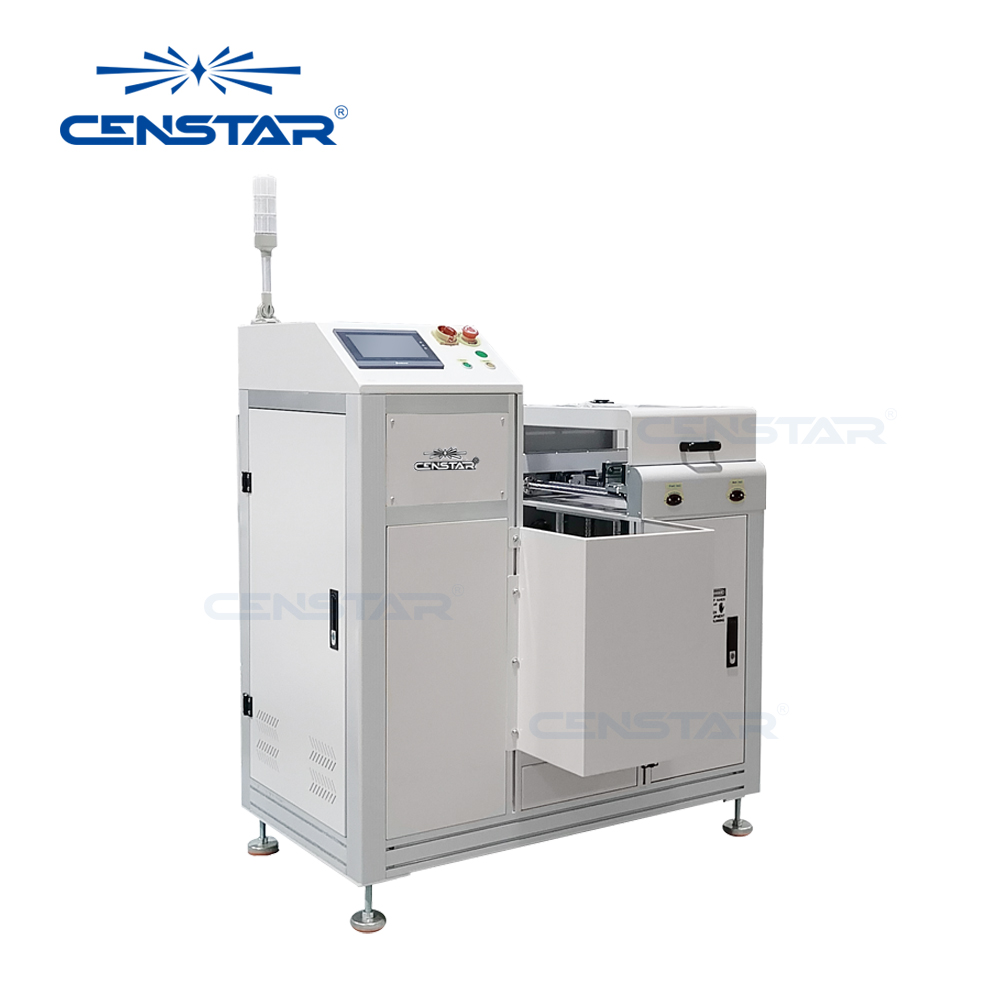

This unit mainly used for semiconductor packaging testing, the front end of the production line transmits the BGA board to the lower machine through a clip magazine storage method, with automatic loader function;
Technical Parameters
| Model | BLD-600A M/L/LL/XL |
| Dimension(L*W*H) | 1175*1000*1080mm |
| PCB size(L*W) | 80*50-310*120mm |
| Magazine size(L*W*H) | 80*50*100-300*150*400mm |
| Transport height | 900±20mm |
| Transfer direction | L-R or R-L |
| Operation side | Front of the machine |
| Fixed rail | Front of the machine |
| Interface | SMEMA |
| Conveyor belts | ESD flat belt |
| PCB edge support | 4mm |
| PCB thinckness | 0.2mm-2mm |
| Feed board time | 6-16s |
| Control | PLC |
| Power supply | AC220V/110V, 50/60 HZ, 1 phase |
| Power consumption | 450W |
| Air supply | 4-6bar |
| Air consumption | 10ltr/min max |
| Weight | 240kg |
